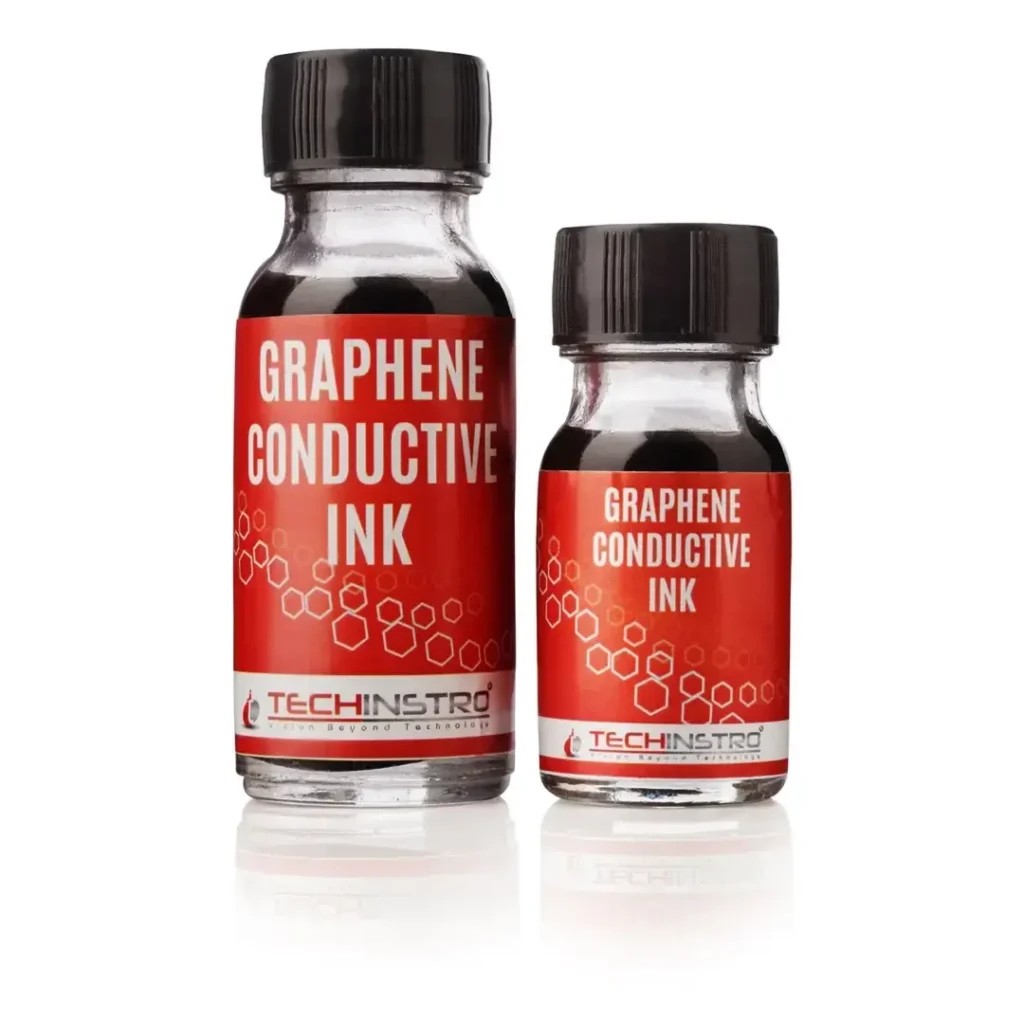

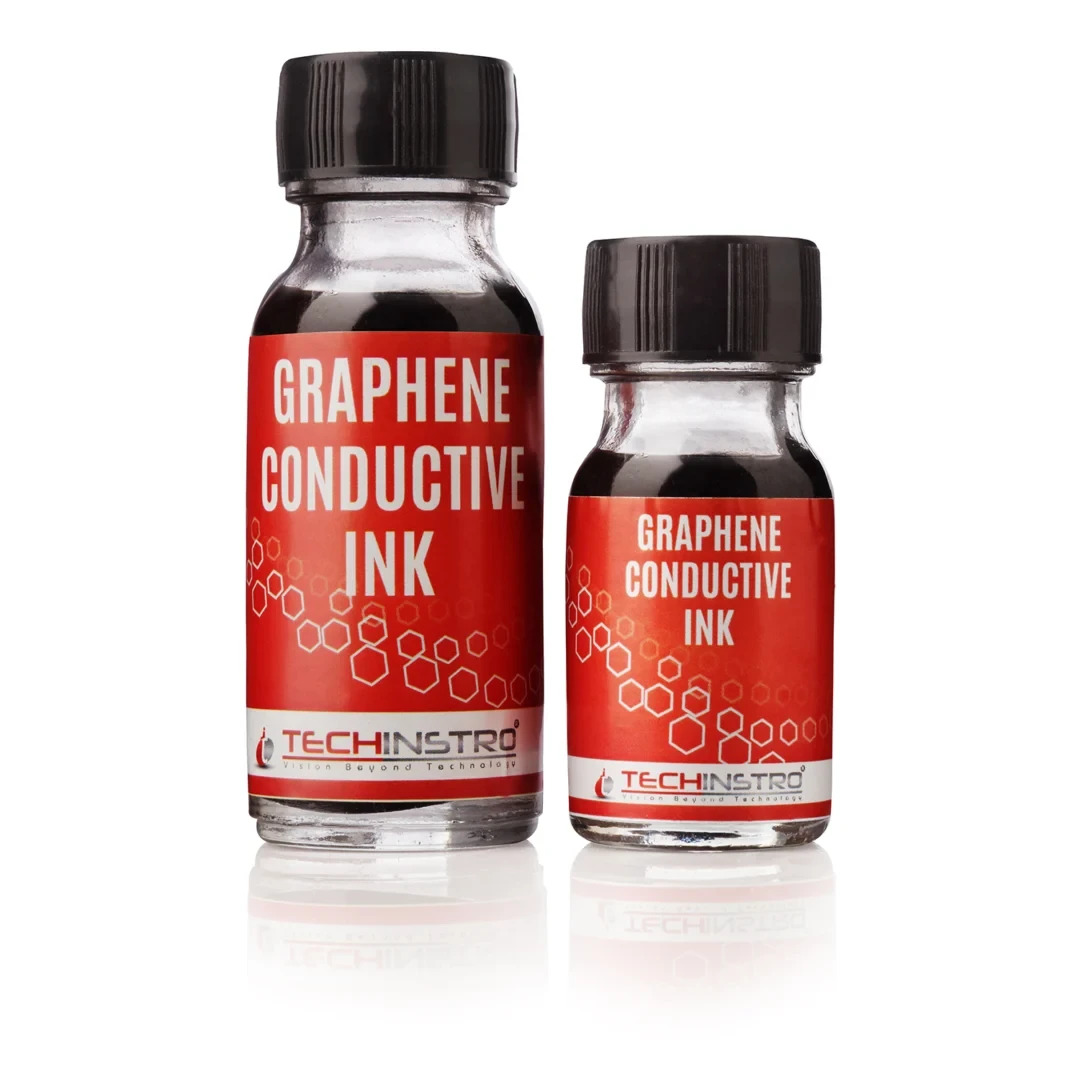

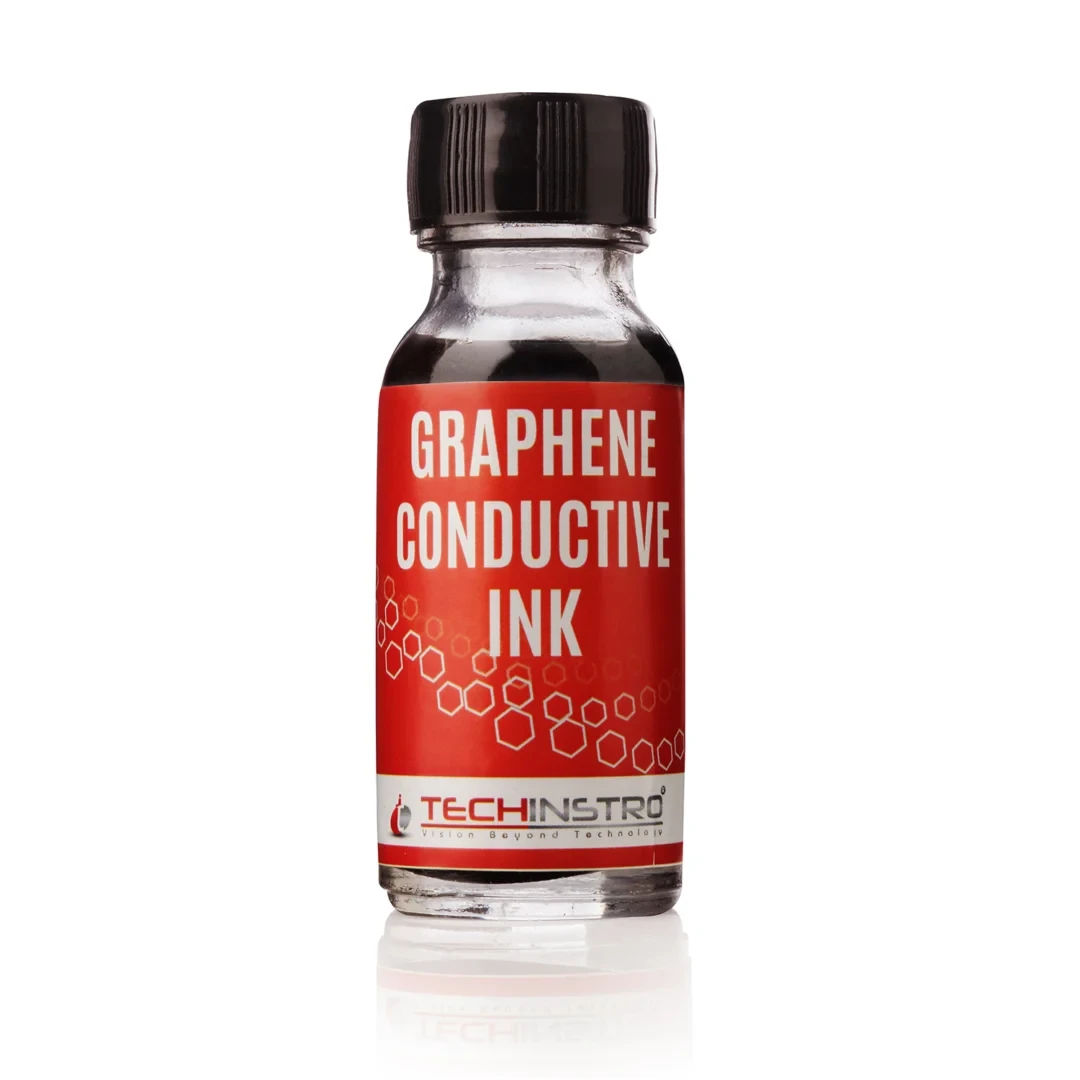

Graphene Ink
Graphene Ink
- Product code – Grap-ink-TI
- CAS number – 7782-42-5
- Molecular formula – C
- Color – Black
- Form factor – Liquid
- Resistivity – 12 ohms/sq.
- Number of layers – 2-3 layers
- Operating temperature – 27 to 35 degree C
- Purity – 99.95%
- Shelf Life – 6 months (Sealed Bottol)
- Density – 1.3 g/ml
- Viscosity – 23.5 Pa⋅s
- % Loading – 40%
- Mesh Size – 100 Mesh
- Customization – Available
- Packaging – 25ml, 100ml, 1 liter, 100 liter and many more
Description and Specification of Graphene Ink
The graphene ink is one of the best conductive ink in terms of cost and printability. It is also known as carbon-based organic ink or Graphene-based ink. It is synthesis by using the solution-phase exfoliation method for mainly bulk quantity. The product formulation includes research-grade graphene, epoxy binder, and solvent, which is not water-based. The graphene used in product making is 2 -3 layered, 99.95% pure and free of impurities. It has excellent conductivity, which makes the product more conductive in nature. Nowadays, the graphene conductive ink is preferable than silver ink due to its cost-effective and environmentally friendly quality.
In this conductive ink composition, the percentage loading of the graphene varies according to the application and client’s requirement. Generally, in our graphene-based ink, the graphene % loading is around 40%, whereas the particle size is less than 3.5 microns. The viscosity is easily adjustable by using binder and solvent so that it can be easily adaptable for the screen as well as inject printing. Depends on the viscosity, it is also called a graphene paste or paints. At many places, people use ethanol as a thinner, but we have our formulated solvent. The ink has an excellent printing property with good adhesion on various substrates like PET, Acrylic, fabric, paper, Silicon wafer, Quartz, Glass, Metals, and many more. It printed on any substrates in multilayers for any design or pattern.
The graphene conductive ink has an excellent curing time and curing temperature. It quickly dries at room temperature, where sometimes UV is needed according to a different substrate. The necessary precaution is a must while storing this product since it is highly volatile. It recommended storing this material in cool and dark places. It has an extensive coverage area, where 10ml of ink is sufficient to cover 1 square meter area. It may apply by using brush, ink-pen, screen, or inject printer or spry pain machine.
| Technical Specifications of Graphene Conductive Ink | |
|---|---|
| Product Name | Graphene Conductive Ink |
| Product Code | Grap-ink-TI |
| Conductive Material | Research-Grade Graphene |
| Chemical Composition | Graphene, Epoxy Binder and Solvent |
| Molecular Formula | C |
| CAS Number | 7782-42-5 |
| Appearance | Black |
| Form | Liquid Conductive Ink |
| Graphene Purity | 99.95% |
| Number of Graphene Layers | 2–3 Layers |
| Particle Size | < 3.5 µm |
| Graphene Loading | Approximately 40% |
| Resistivity / Sheet Resistance | 12 Ω/sq |
| Density | 1.3 g/mL |
| Viscosity | 23.5 Pa·s |
| Mesh Size | 100 Mesh |
| Operating Temperature | 27°C – 35°C |
| Solvent System | Solvent-Based, Non-Water-Based Formulation |
| Drying / Curing | Room-Temperature Drying; UV Curing May Be Used Depending on Substrate |
| Application Methods | Brush, Conductive Pen, Screen Printing, Inkjet Printing and Spray Coating |
| Compatible Substrates | PET, Acrylic, Fabric, Paper, Silicon Wafer, Quartz, Glass and Metals |
| Coverage | Approximately 10 mL per 1 m² |
| Shelf Life | 6 Months in Sealed Container |
| Customization | Available |
| Packaging | 25 mL, 100 mL, 1 Liter, 100 Liter and Custom Quantities |
| Typical Applications | Printed Electronics, Flexible Electronics, Wearable Devices, Sensors, PCBs, OLEDs, RFID, Supercapacitors, Photovoltaics, Membrane Switches and Energy Storage Devices |
| Storage Conditions | Store in a Cool, Dark Place with the Container Tightly Sealed |
Download Resources
Graphene Ink Applications
It mainly used in flexible and Flexographic’s electronics, wearable electronics, thermal applications, printed circuit board (PCB’s), Heat sinks, soldering, OLED, touchscreens, and radio-frequency identification tags (RFID) tags. The uses of graphene conductive ink include chemical and biological sensors, super-capacitors, smart packaging, membrane switches, thin-film transistors, e-paper, photovoltaic cells, and other printed devices. It also used to make the electrochemical, optoelectronics, and energy-storing device (Graphene battery).
Graphene Ink Comparison
| Parameter | Graphene Conductive Ink | Silver Conductive Ink | Carbon Conductive Ink | Copper Conductive Ink |
|---|---|---|---|---|
| Conductive Material | Graphene Nanosheets | Silver Nanoparticles / Flakes | Carbon / CNT Particles | Copper Nanoparticles |
| Electrical Conductivity | High | Excellent | Moderate | Very High |
| Sheet Resistance | Low to Moderate | Very Low | Moderate to High | Low |
| Oxidation Resistance | Excellent | Excellent | Excellent | Limited |
| Flexibility | Excellent | Excellent | Excellent | Moderate |
| Chemical Stability | Excellent | Good | Excellent | Moderate |
| Environmental Stability | Excellent | Excellent | Good to Excellent | Moderate |
| Printing Compatibility | Screen, Inkjet, Brush and Spray | Screen, Inkjet and Flexographic | Screen and Flexographic | Screen and Inkjet |
| Flexible Substrates | Excellent | Excellent | Very Good | Moderate |
| Wearable Electronics | Excellent | Excellent | Good | Limited |
| Sensor Applications | Excellent | Excellent | Excellent | Good |
| Energy Storage Applications | Excellent | Good | Good | Moderate |
| RFID & Printed Circuits | Very Good | Excellent | Good | Very Good |
| Corrosion Resistance | Excellent | Excellent | Excellent | Limited |
| Material Cost | Moderate | High | Economical | Moderate |
| Typical Applications | Flexible Electronics, Wearables, Sensors, Supercapacitors, RFID, OLEDs, Printed Electronics | RFID, Touch Sensors, Flexible Circuits, Printed Electronics | Membrane Switches, Sensors, EMI Shielding, Heating Elements | Conductive Circuits, Electrodes and EMI Shielding |
| Key Advantage | Excellent Balance of Conductivity, Flexibility, Stability and Cost | Highest Electrical Conductivity | Low Cost and Excellent Chemical Stability | High Conductivity at Lower Cost than Silver |
| Main Limitation | Higher Resistance than Silver-Based Ink | Higher Material Cost | Lower Conductivity than Metal and Graphene Inks | Susceptible to Oxidation |
Graphene Ink Safety Features
- The bottle cap must close tightly to avoid solvent evaporation.
- Stored it below room temperature
- Since it is volatile material, hence ventilation is needed in the operation area.
- Shake the bottle vigorously for 5-10 minutes before applying on any surface.
- Used it within the six months of opening
- Avoid skin contact
- Keep it far from the children’s reach.
- After the operation, wash hands and exposed areas of the skin properly.
Why Choose Us?
We at Techinstro manufacture the best quality product which suits the customer need, where we also provide customization as per the client requirement. We cater to deliver products, mainly in research and development labs, industries, colleges, institutes, and other related organizations. We are the suppliers of Graphene ink in small (minimum 25 ml) and bulk (commercial) quantity.
FAQ's
Yes, it is printable by both screen and inkjet, since its viscosity is easily adjustable for either method.
It should be stored below room temperature in a cool, dark, ventilated place with the cap tightly closed.
It is suitable for both, as we supply it from a 25 mL lab quantity up to bulk commercial volumes.
The particle size is less than 3.5 microns, using 2–3 layered graphene.
It dries quickly at room temperature, though UV curing may be needed on some substrates.
It contains about 40% graphene loading in a non-water-based epoxy binder and solvent system.
Its resistivity is 12 ohms/sq.
The purity of the graphene used is 99.95%.
It has a shelf life of 6 months in a sealed bottle.
Its viscosity is 23.5 Pa·s
Its density is 1.3 g/ml.
It prints well on PET, acrylic, fabric, paper, silicon wafer, quartz, glass, and metals.
About 10 ml of ink is sufficient to cover 1 square meter.
