Quartz Wool
Quartz Wool
Main Highlights
- Product Series – TI-QWOOL
- Form Factor – Solid
- Colour – Milky White
- Molecular Formula – SiO2
- Melting Point – 1690 ºC
- Density – 2.3 g/cm3
- Refractive Index – 1.6
- Thermal Conductivity – 1.38 W/m-K
- Electrical Resistivity – 71 x 107 Ω-cm
- Moisture content – < 0.4% • Appearance – White fluffy woolen • Purity – > 99.9%
- Customization – Not available
- Pack Size – 50gm, 100gm, 250gm, 500gm, and 1kg
Technical Specifications of Quartz Wool
Quartz wool is a high-purity fibrous silica material widely used in laboratory research, gas chromatography, catalyst support systems, tube furnaces, filtration applications, and semiconductor processing. Due to its exceptional thermal stability, chemical resistance, low contamination characteristics, and excellent insulation properties, quartz wool is an ideal material for high-temperature scientific and industrial applications.
| Technical Specifications of Quartz Wool | |
|---|---|
| Product Name | Quartz Wool |
| Material Composition | High-Purity Quartz (SiO₂) |
| Chemical Formula | SiO₂ |
| Purity | ≥ 99.9% |
| Appearance | White Fibrous Wool |
| Fiber Type | Amorphous Quartz Fibers |
| Fiber Diameter | Typically 3–10 µm |
| Density | Low Density Fibrous Material |
| Maximum Continuous Operating Temperature | 1000°C |
| Maximum Short-Term Temperature | 1200°C |
| Softening Point | Approximately 1683°C |
| Thermal Conductivity | Low |
| Thermal Shock Resistance | Excellent |
| Electrical Properties | Excellent Electrical Insulator |
| Chemical Resistance | Excellent Resistance to Most Acids and Chemicals (Except HF) |
| Moisture Absorption | Very Low |
| Contamination Level | Ultra-Low |
| Gas Permeability | High |
| Color | White |
| Packaging | Bulk Pack or Custom Quantity |
| Applications | Gas Chromatography, Catalyst Support, Tube Furnace Packing, Filtration, Thermal Insulation, Laboratory Research, Semiconductor Processing |
| Storage Conditions | Store in a Clean, Dry Environment Away from Contaminants |
Key Features of Quartz Wool
- Manufactured from high-purity quartz (SiO₂)
- Excellent thermal stability up to 1000°C continuous operation
- Outstanding resistance to thermal shock and temperature cycling
- Low contamination and high chemical purity
- Excellent resistance to most acids and chemicals except hydrofluoric acid
- Ideal for gas chromatography and catalyst support applications
- Suitable for tube furnaces, filtration systems, and thermal insulation
- Excellent electrical insulation and low moisture absorption
Full Description of Quartz Wool

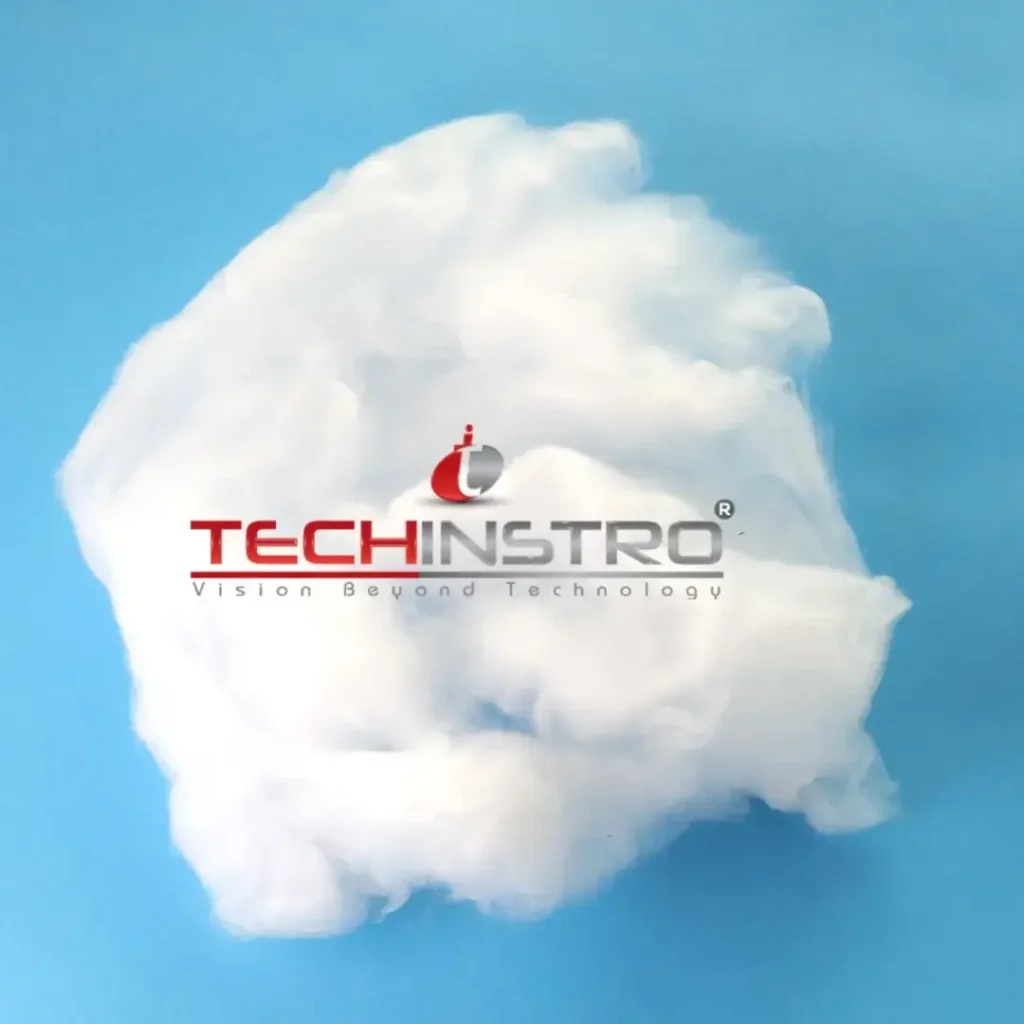

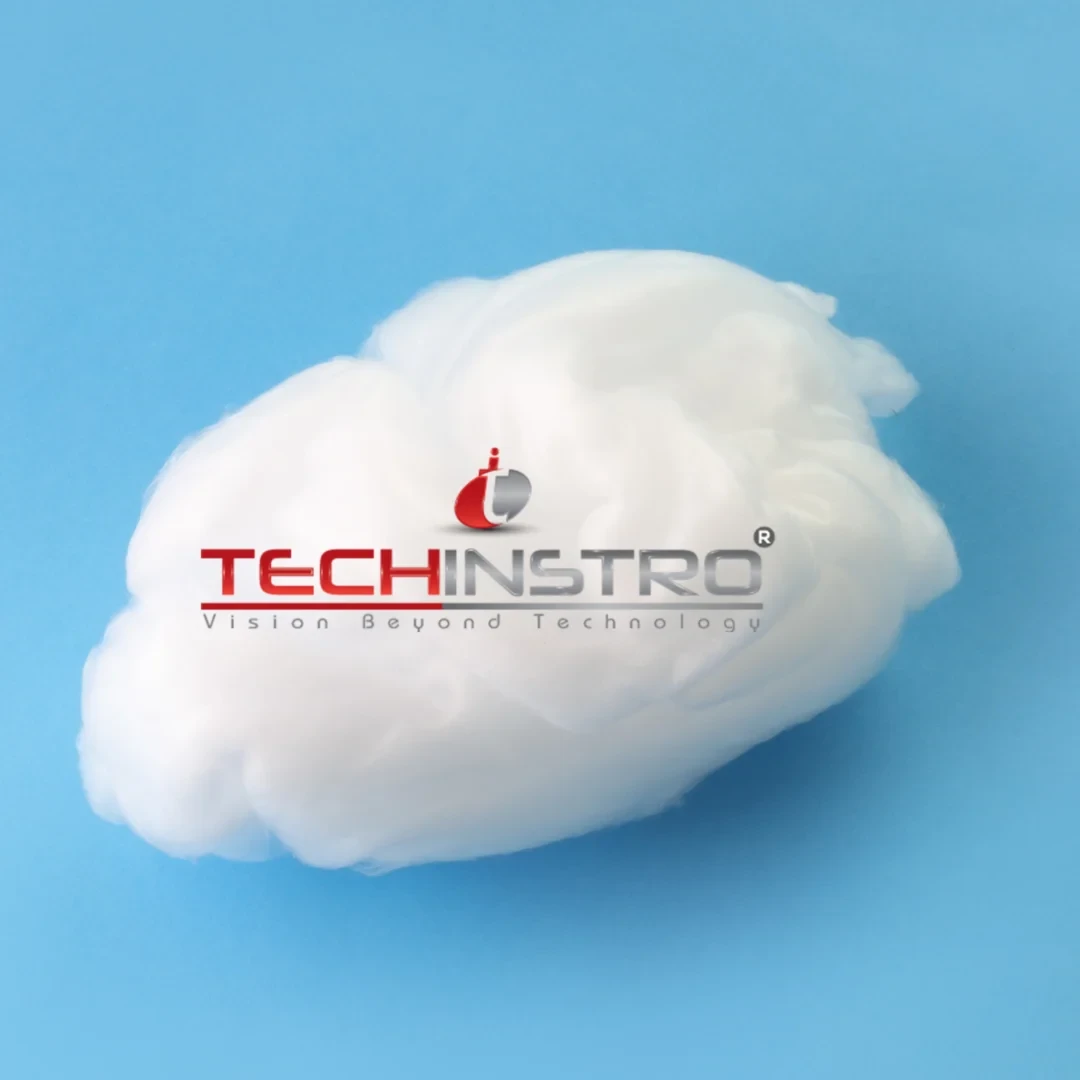

The random asymmetric arrangement of fragile and flexible fibers of fused quartz is termed Quartz wool. It is also known as silica wool. It is a milky white color that looks like cotton wool. It is made up of highly pure SiO2 and high-quality quartz crystals. Like fused quartz products, it also has similar properties. The maximum operating temperature of this is 1150 ºC.
The fiber’s diameter is divided mainly into three major categories as coarse, fine, and ultra-fine. The thickness of coarse fibers is 12 to 15 microns, whereas, in fine wool, the thickness is around 7-9 microns. The pricing of ultra-fine quartz wool is relatively high due to its high surface area and less thickness, i.e., about 3 microns. It efficiently sustains at high temperatures. It is also non-flammable, non-combustible, and chemically inert, making it more popular in the industries.
Quartz Wool vs Glass Wool vs Ceramic Fiber Wool vs Rock Wool
Quartz wool is a high-purity silica-based fibrous material specifically designed for laboratory, analytical, semiconductor, and high-temperature applications. Compared to glass wool, ceramic fiber wool, and rock wool, quartz wool offers superior chemical purity, minimal contamination, excellent thermal shock resistance, and outstanding compatibility with gas chromatography, catalyst support systems, and tube furnace applications.
| Parameter | Quartz Wool | Glass Wool | Ceramic Fiber Wool | Rock Wool |
|---|---|---|---|---|
| Material Composition | High-Purity Quartz (SiO₂) | Borosilicate Glass Fibers | Alumino-Silicate Ceramic Fibers | Basalt and Mineral Fibers |
| Purity | ≥ 99.9% | Moderate | High | Moderate |
| Maximum Continuous Temperature | 1000°C | 450–550°C | 1260–1600°C | 650–800°C |
| Thermal Shock Resistance | Excellent | Moderate | Excellent | Good |
| Chemical Resistance | Excellent (Except HF) | Good | Good | Good |
| Contamination Risk | Very Low | Moderate | Low | Moderate |
| Electrical Insulation | Excellent | Excellent | Excellent | Excellent |
| Moisture Absorption | Very Low | Moderate | Low | Low |
| Gas Chromatography Applications | Excellent | Not Preferred | Limited | Not Suitable |
| Catalyst Support Applications | Excellent | Limited | Good | Not Suitable |
| Tube Furnace Applications | Excellent | Limited | Excellent | Good |
| Semiconductor Compatibility | Excellent | Poor | Moderate | Poor |
| Laboratory Research Use | Excellent | Moderate | Good | Limited |
| Thermal Insulation Performance | Excellent | Good | Excellent | Excellent |
| Fiber Purity | Ultra High | Moderate | High | Moderate |
| Mechanical Strength | Good | Moderate | Good | Very Good |
| Typical Applications | Gas Chromatography, Catalyst Support, Tube Furnaces, Filtration, Semiconductor Research | Building Insulation, HVAC Systems | Industrial Furnaces, Kilns, High-Temperature Insulation | Construction Insulation, Fire Protection |
| Relative Cost | Premium | Economical | Moderate to High | Economical |
| Key Advantage | Highest Purity & Lowest Contamination | Low-Cost Insulation | Highest Temperature Resistance | Durable Thermal Insulation |
Why Choose Quartz Wool?
- Ultra-high purity quartz fibers with minimal contamination
- Excellent thermal stability up to 1000°C continuous operation
- Ideal for gas chromatography and catalyst support applications
- Outstanding thermal shock resistance and chemical stability
- Suitable for semiconductor processing and laboratory research
- Excellent electrical insulation and low moisture absorption
- Preferred material for high-purity analytical applications
- Compatible with tube furnaces, filtration systems, and scientific instruments
Quartz Wool Applications
It chiefly uses for insulation purposes due to its excellent temperature resistance properties. It also applies in the filtration of corrosive fluid and gases, air pollution control, catalyst support, support bed in the distillation and HPLC column, filler for analytical instruments, IR heat diffuser, and many more. Since it is chemically inert, the acid filtration also becomes a regular application.
FAQ's
Highly pure SiO2 and high-quality quartz crystals
1690 °C
1150 °C
< 0.4%
71 x 107 Ω-cm
1.38 W/m-K
1-3 m
Insulator, IR Heat Diffuser, and Acid Filtration
Safety Instructions of Quartz Wool
- The protective gloves should be wear at the time of operation.
- Safety goggle is a must during handling.
- Do not touch any part of the skin while using.
- Store in a moisture-proof dry place.
