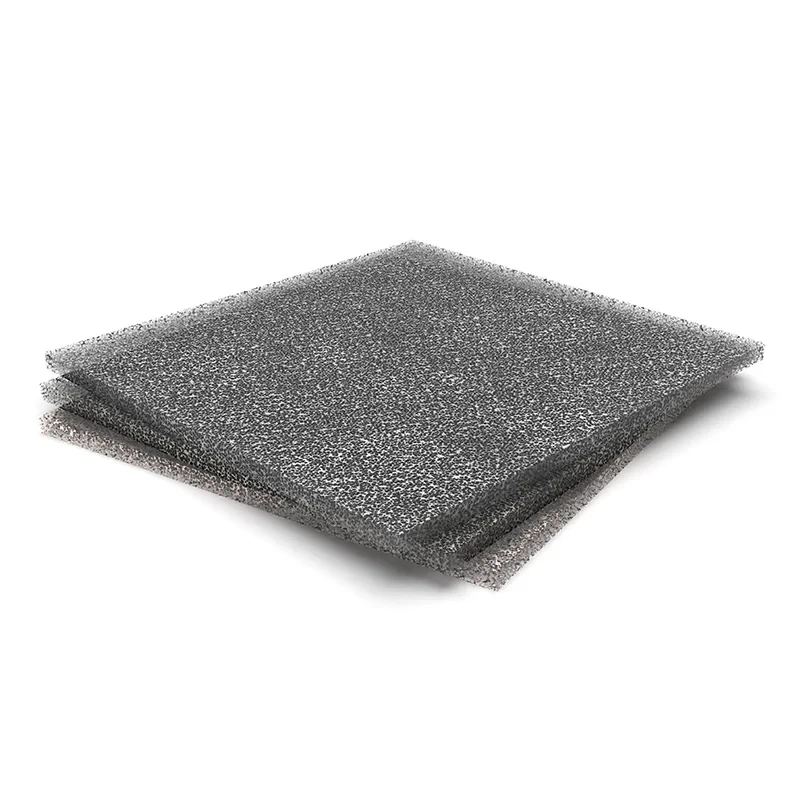

Aluminum Foam
Aluminum Foam
Technical Specifications
- Material: Aluminum 98.5% (Aluminum 6101 alloy) or Pure aluminum 99.5%
- Density range: 0.11 to 0.41 g/cm³
- Porosity: 60-90%
- Pore size: 2-11 mm (Closed Cell)
- Compressive Strength: Up to 44 MPa
- Maximum service temperature: 450°C
- Melting point: 660°C
Description and Specification of Aluminum Foam

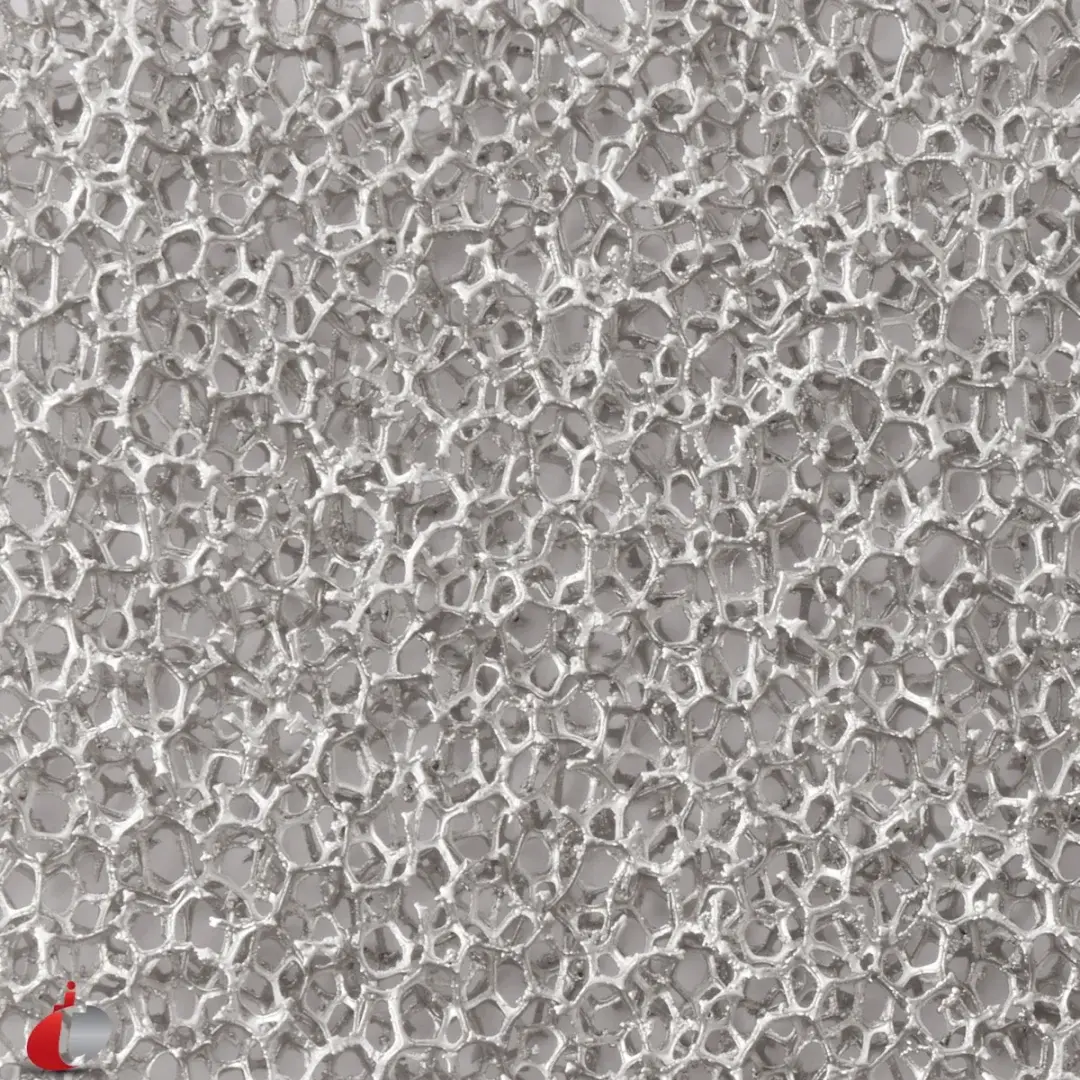

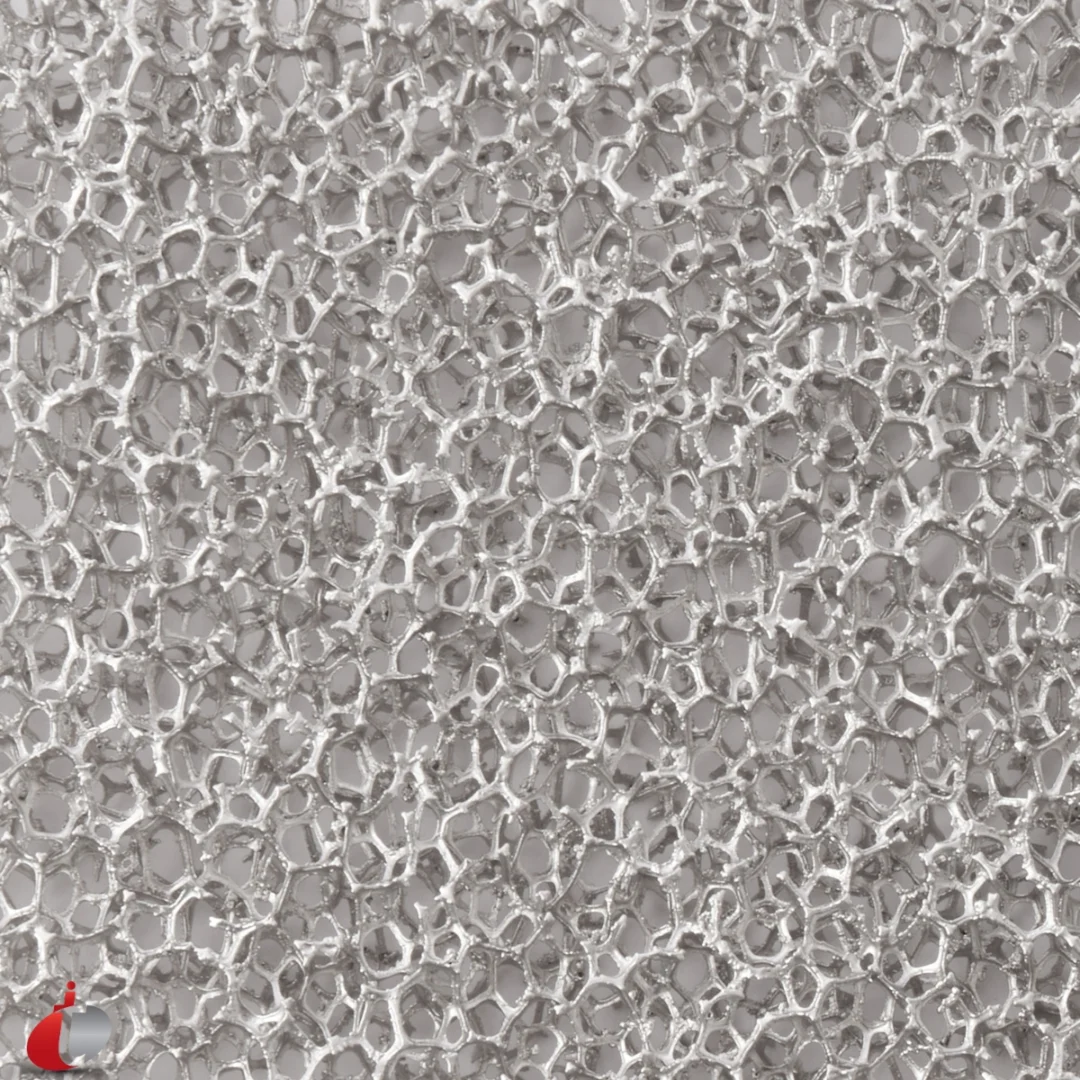

Aluminum foam is a special material with a unique structure. It is made of aluminum strands that form connected cells with open spaces. This foam is strong and light, making it useful in many industries. It has many air spaces called pores. These pores comprise 80% to 98% of the foam’s volume. The high number of pores gives the foam its unique features.
Aluminum foam is more robust than solid metal of the same weight. This strength-to-weight ratio is vital for many uses. The foam structure has other benefits, too. It absorbs energy well, which helps protect against impacts. The foam reduces sound, making it good for quieting noisy areas. It also keeps heat in or out, allowing temperature control in different applications.Companies make it in several ways, each with slightly different features. One common method is using molten metal. In this process, gas or special chemicals create bubbles in melted aluminum. As the metal cools, these bubbles form the foam structure. Another method uses fillers like salt grains or small plastic pieces. These fillers create spaces in the aluminum. Later, the fillers are removed, leaving holes behind.
Another method of making aluminum foam is to use aluminum powder mixed with special additives. When heated, this mixture foams up, and the particles stick together. This process is called sintering. After cooling, this method creates a type of aluminum foam.
Types
There are two main types: random-pore foam and ordered-pore foam. Random-pore foam has unevenly shaped holes, which looks more natural. Ordered-pore foam has evenly spaced, open holes, which looks more structured. Both types are useful for different tasks.
Structure
The structure of the foam gives it special qualities. The open cells let air or liquids pass through, making the foam good for filtering. The structure also creates a large surface area, which helps with heat exchange and chemical reactions. The foam’s structure can be changed to fit different needs. Makers can control the size of the holes and how dense the foam is, letting them create foam for specific uses.
It is flexible in how it can be used. It can be cut, shaped, and joined like solid aluminum. This makes it easy to work with and easy to use. The foam can be welded, glued, or attached with screws or bolts. This flexibility in making things adds to its value in the industry.
Production
Scientists are constantly working to improve aluminum foam. They look for new ways to make it and new uses for it. As technology gets better, more uses for the foam are found. It’s used in car safety, airplane parts, and many other areas. The list of ways to use it keeps growing.
Features Of Aluminum Foam
- Strength-to-Weight Ratio It is strong and light. This feature makes it useful for structures needing both strength and low weight.
- Electrical and Thermal Conductivity The foam structure conducts electricity and heat well. This property is useful in electronics and heat management.
- Buoyancy It floats in water. This feature opens up uses in marine applications.
- Fire Resistance The foam resists flames well. This property improves safety in many settings.
- Acoustic Insulation It absorbs sound effectively. It reduces noise in various environments.
- Energy Absorption The foam absorbs impact energy well. This feature is valuable for safety applications.
- Easy Processing Standard tools can cut and shape aluminum foam. It can be joined with glue or welding.
- Customizable Dimensions Manufacturers can make it in many sizes. This flexibility meets diverse application needs.
- High Resistance It resists deformation 100 times more than solid aluminum. This feature improves its structural performance.
Technical Specification of Aluminum Foam
| Parameter | Specification |
|---|---|
| Product Name | Aluminum Foam |
| Material Composition | Aluminum 98.5% (Aluminum 6101 alloy) or pure aluminum 99.5% |
| Density Range | 0.11–0.41 g/cm³ |
| Porosity | 60–90% as listed in the technical specifications |
| Pore Size | 2–11 mm (listed for closed-cell foam) |
| Compressive Strength | Up to 44 MPa |
| Maximum Service Temperature | 450 °C |
| Melting Point | 660 °C |
| Cell Structure | Random-pore or ordered-pore structures |
| Weight Characteristics | Lightweight structure with a high strength-to-weight potential |
| Energy Absorption | Suitable for impact-energy absorption applications, depending on structure and loading |
| Acoustic Properties | Sound absorption and noise-reduction potential |
| Thermal Properties | Suitable for selected insulation and heat-management applications |
| Electrical Properties | Electrical conductivity depends on the foam structure and material configuration |
| Corrosion Resistance | Depends on alloy composition and operating environment |
| Processing | Can be cut, shaped and joined using suitable methods |
| Joining Methods | Welding, adhesive bonding and mechanical fastening, depending on the design |
| Customization | Dimensions, density, pore size and structure can be selected according to availability |
| Applications | Automotive, aerospace, construction, acoustic insulation, filtration, energy systems and heat exchangers |
Applications of Aluminum Foam
Aluminum foam is useful in many industries. The automotive sector uses it for crash protection and vehicle under bodies. Aerospace companies use it instead of honeycomb structures. It’s cheaper and has better fire resistance. Construction projects use foam for insulation and sound control. It works well in roof panels and wall coverings.
The foam has other uses, too. Designers create unique furniture and lamps with it. Sound engineers use it in tunnels and highway barriers. Energy companies use it in heat exchangers and fuel cells. Its high surface area and conductivity are beneficial here. Filtration systems also use it. It works well for gas and liquid filtering.
Comparison
| Parameter | Aluminum Foam | Titanium Foam | Solid Aluminum |
|---|---|---|---|
| Material | Aluminum or aluminum alloy | Titanium | Aluminum or aluminum alloy |
| Structure | Porous, cellular metal structure | Porous, cellular metal structure | Dense, solid metal |
| Density | Listed range: 0.11–0.41 g/cm³ | Depends on porosity and foam configuration | Higher than typical metal foams for the same external volume |
| Porosity | Listed range: 60–90%; confirm the selected configuration | Typically 75–95%, as stated on Techinstro’s titanium foam page | Not applicable to conventional solid material |
| Strength Characteristics | Compressive strength listed up to 44 MPa | Depends on pore structure, density and manufacturing process | Depends on alloy, temper and component design |
| Energy Absorption | Suitable for lightweight impact-absorption designs | Can provide energy absorption in appropriately designed structures | Depends on geometry and material grade |
| Corrosion Resistance | Generally good, depending on alloy and environment | Generally excellent in many environments, depending on grade | Depends on alloy and environmental conditions |
| Acoustic Performance | Useful for selected sound-absorption and noise-control applications | Depends on pore geometry and component design | Not inherently a porous sound-absorbing material |
| Fluid and Gas Flow | Potentially suitable when the pore structure supports the required flow | Potentially suitable for specialized porous filtration and flow applications | Generally impermeable through the solid material |
| Thermal Applications | Heat exchange, selected insulation designs and thermal management | Selected high-performance thermal and research applications | Heat transfer and structural applications |
| Biomedical Potential | Application-specific; depends on material and biocompatibility requirements | Promising for suitable biomedical and implant applications | Depends on alloy grade and intended use |
| Typical Applications | Automotive crash protection, aerospace structures, acoustic panels, filtration and heat exchangers | Biomedical research, aerospace research, filtration and energy systems | Frames, panels, housings and general structural components |
| Best Suited For | Lightweight designs requiring energy absorption, porous structure or noise control | Applications where titanium’s material properties justify its use | Applications requiring a conventional dense aluminum component |
Note: This is a general material comparison. Actual performance depends on alloy, density, pore size, cell structure, manufacturing method and operating conditions.
Why Choose Techinstro Aluminum Foam?
Techinstro Aluminum Foam is a lightweight porous metal material developed for research and industrial applications where low density, energy absorption, acoustic performance and functional cellular structures are important. Its adaptable structure makes it suitable for a range of engineering, manufacturing and materials-development projects.
- Lightweight Construction: The listed density range of 0.11–0.41 g/cm³ makes aluminum foam worth considering for weight-sensitive designs.
- High Strength-to-Weight Potential: Its cellular structure offers opportunities to balance structural performance and material weight in suitable applications.
- Effective Energy Absorption: Aluminum foam can help absorb impact energy, making it useful for selected automotive safety and protective-component designs.
- Acoustic Insulation: Its porous structure can support sound-absorption and noise-reduction applications in buildings, tunnels and industrial environments.
- Thermal Management: Aluminum foam can be evaluated for heat exchangers and other applications that benefit from a porous structure and increased surface area.
- Multiple Pore Structures: Random-pore and ordered-pore structures offer different design possibilities for specific engineering requirements.
- Filtration Potential: Suitable pore configurations can support gas or liquid flow and specialized filtration applications.
- Versatile Processing: Depending on the selected product, aluminum foam can be cut, shaped and integrated using suitable joining methods.
- Multiple Industrial Applications: Potential uses include automotive components, aerospace research, construction panels, marine applications, energy systems and industrial noise control.
- Material Selection Support: Techinstro can help evaluate the appropriate material composition, dimensions, density and pore structure for your intended application.
- Bulk Supply and Customization: Contact Techinstro to discuss project quantities, required dimensions and available configurations.
Looking for aluminum foam for a research project or industrial application? Contact Techinstro with your required dimensions, pore size, density, operating temperature and intended use to request a suitable specification and quotation.
How to Use?
- Identify the specific use requirements
- Choose the right foam type (stochastic or regular stacked cell)
- Select the needed density and pore size
- Cut or shape the foam to fit
- Attach the foam using glue, welding, or mechanical fasteners
Safety Instructions
- Use metal gloves and face shields when handling
- Follow safety rules during cutting or shaping
- Keep a first aid kit nearby
- Store in a well-aired area away from heat
- Dispose of waste according to local rules
Why Choose Us
Techinstro is a pioneer in manufacturing Metal Foams. We offer high-quality aluminum foam at reasonable prices. Our highly dedicated team of researchers and engineers ensures our products meet client needs. We help with product selection and setup. We use state-of-the-art technology to maintain high quality and can supply it in bulk. We deliver worldwide quickly. Techinstro is a trusted maker and supplier of aluminum foam for research and industry. Contact us today to get a customized quote.
FAQ's
Its high strength-to-weight ratio provides strong structural performance while keeping overall weight very low.
The density ranges from 0.11 to 0.41 g/cm³, and porosity ranges from 60% to 90%.
We supply it in two grades: 98.5% aluminum (6101 alloy) and 99.5% pure aluminum.
The closed-cell foam we supply has a pore size ranging from 2 to 11 mm.
It offers a compressive strength of up to 44 MPa, which suits lightweight load-bearing parts.
It has a melting point of about 660°C, the same as the base aluminum metal.
It can be used safely at working temperatures up to 450°C.
Yes, its cellular structure absorbs impact energy and dampens vibration, which makes it useful for automobile crash protection.
Its high strength-to-weight ratio provides strong structural performance while keeping overall weight very low.
Yes, it absorbs sound well and is used in highway noise barriers, tunnels, and construction panels.
Yes, it resists fire well and is a safe choice for building panels and protective structures.
Random-pore types have irregular holes, while ordered-pore types have evenly spaced, uniform openings.
Open-cell foam has connected pores that let air or liquid pass through, while closed-cell foam has sealed pores suited for structural and impact uses.
Yes, it conducts both heat and electricity, though the level depends on its density and pore structure.
Yes, it can be cut and shaped with standard tools and joined by welding, gluing, or screws and bolts.
Yes, we can customize the dimensions, pore size, and density to match your specific requirements.
Yes, the open-pore form allows gases and liquids to pass through, which makes it suitable for filtration systems.
Yes, its large internal surface area supports efficient heat transfer in heat exchangers and thermal management systems.
