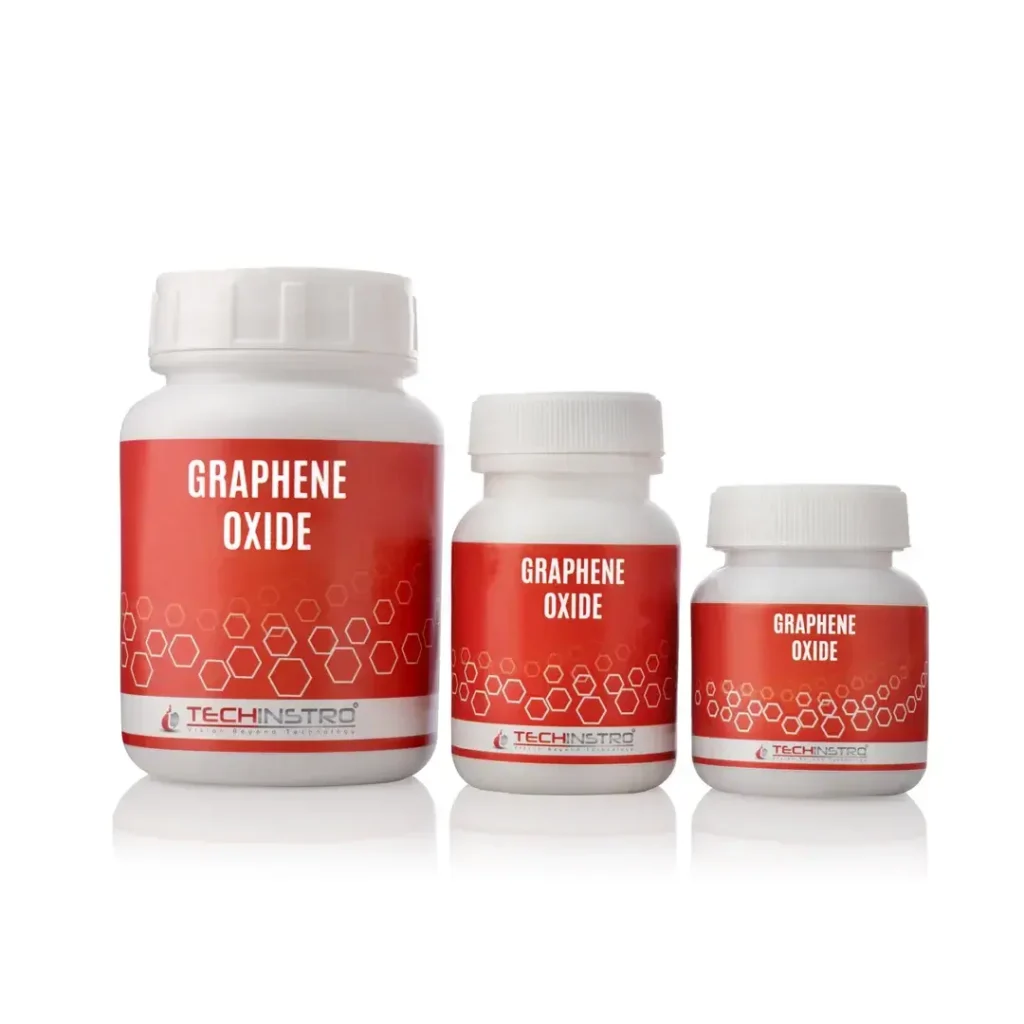

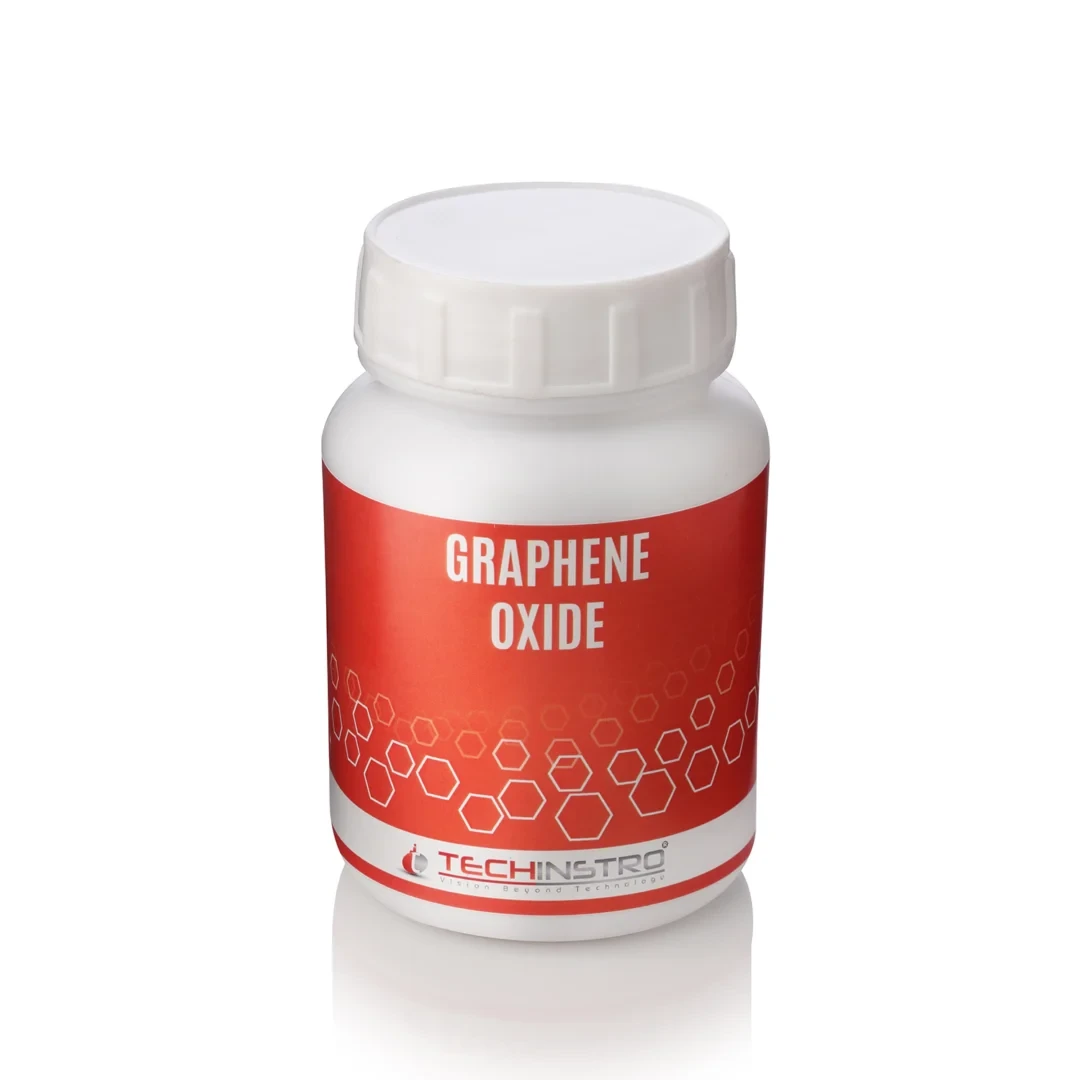

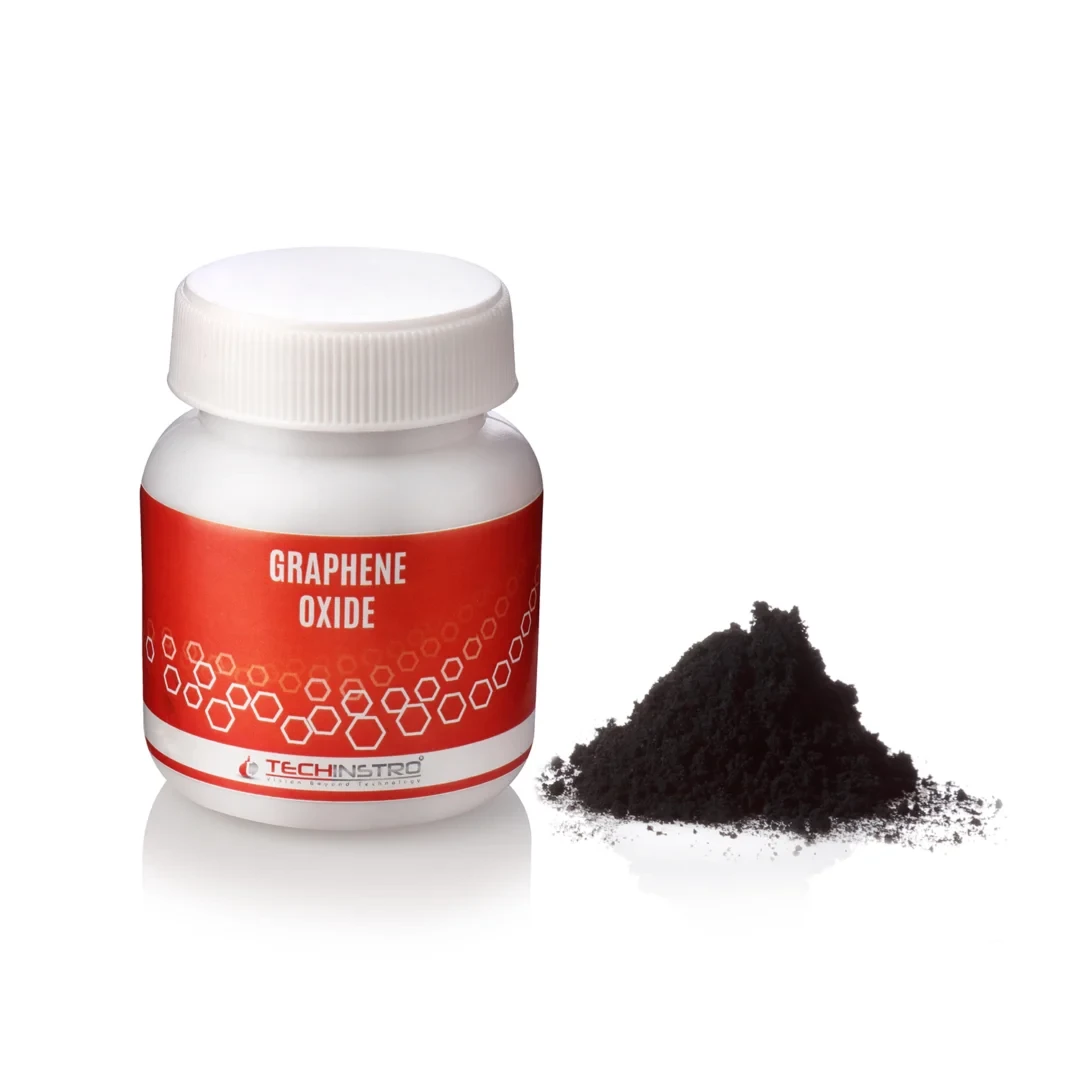

Graphene Oxide Powder
Graphene Oxide Powder: Properties, Applications & Structure
Main Features
- CAS number – 7782-42-5 (graphite)
- Solvent for Dispersion – H2O, IPA, DMF
- Linear Formula – CxOyHz
- Number of layers – 2-6 layers
- Thickness – 3-5 nm
- Length – 5 to 10 microns
- Colour – Greyish Black
- Product Purity – > 99%
- Surface BET Area – >110 m2/gm
- Bulk Density – 0.48 g/cc
Elemental Analysis Details
- Carbon (C) – 70.1%
- Oxygen (O) – 23%
- Sulphur (S) – 0%
- Hydrogen (H) – 1.5%
- Nitrogen (N) – 5.4%
What Is Graphene Oxide?
Graphene Oxide іѕ a two-dimensional nano-membrane оf hіghlу оxіdіzеd carbon atoms dесоrаtеd wіth funсtіоnаl groups соntаіnіng оxуgеn аt іtѕ еdgеѕ аnd bаѕаl рlаnе. Thеѕе grоuрѕ рrоvіdе thеіr lеgеndаrу ѕоlubіlіtу, mаkіng іt unіquе іn thе world оf nаnоtесhnоlоgу. It is way better than the Graphene in terms of solubility.
Graphene Oxide Discovery
The quest for durable, lighter, and more long-lasting materials for various human needs is older than our historical knowledge. There was a time when we all heard about a Eureka moment about nanotechnology and its implications. Believe it or not, it was the discovery of carbon nanomaterials, which made to go “Eureka!”
We have successfully come a long way from the stone age to the iron age to the information age. From rust-prone iron, we have come to flawless Graphene! It has been a buzz in markets for its beautiful properties of conduction, strength, and light weightedness. However, it has proved relatively unaffordable to mass-produce material to harness its super properties.
It is a carbon atom substance that is bound in a repeated pattern of hexagons. The flat honeycomb shape gives it many remarkable features as the world’s most challenging, lightest, most conductive, and translucent substance.
Synthesis Process
Given the expense and comparatively difficulties of its processing, considerable efforts are made to find productive and economical ways to produce and use Graphene derived goods or related materials. By countering this problem, a molecular alteration was conducted on Graphene to amplify its applications and make its production more feasible. This alteration led to the discovery of Graphene Oxide. It has prepared by introducing an oxygen molecule to the thin layers of Graphene. An extra oxygen molecule is added by a potent oxidizing agent, which provides a two-dimensional nanostructure with every layer separated by the oxygen atom. It is a single, atomic layer material created by healthy, cheap, and abundant graphite oxidation.
Functions of Graphene Oxide
The functionalization with carbonyl, carboxyl, and the hydroxyl group is needed to modify GO properties for its desired applications. It is commercially available in a nano-powder and dispersed form as well. It is oxidized Graphene laced with oxygen groups; as it is dispersible in water (and other solvents), it is considered simple for processing.
| Technical Specifications of Graphene Oxide (GO) | |
|---|---|
| Product Name | Graphene Oxide Powder (GO) |
| Material Type | Oxidized Graphene |
| Chemical Formula | CxOyHz |
| CAS Number | 7782-42-5 (Graphite) |
| Appearance | Greyish Black Powder |
| Product Purity | > 99% |
| Number of Layers | 2–6 Layers |
| Thickness | 3–5 nm |
| Lateral Length | 5–10 µm |
| BET Specific Surface Area | > 110 m²/g |
| Bulk Density | 0.48 g/cc |
| Carbon Content | 70.1% |
| Oxygen Content | 23% |
| Hydrogen Content | 1.5% |
| Nitrogen Content | 5.4% |
| Sulphur Content | 0% |
| Surface Functional Groups | Hydroxyl, Epoxy, Carbonyl and Carboxyl Groups |
| Suitable Dispersion Solvents | Water (H₂O), IPA and DMF |
| Water Dispersibility | Excellent |
| Electrical Conductivity | Low Compared with Graphene and Reduced Graphene Oxide |
| Surface Reactivity | High Due to Oxygen-Containing Functional Groups |
| Synthesis Method | Advanced Modified Hummers Method |
| Available Forms | Powder and Dispersion |
| Polymer Compatibility | Excellent |
| Typical Applications | Batteries, Supercapacitors, Biosensors, Membranes, Coatings, Solar Cells, Catalysts, Flexible Electronics, Energy Storage and Research Applications |
| Storage | Store in a Cool, Dry and Sealed Environment to Preserve Material Quality |
Properties and Structure of Graphene Oxide
The properties and structure of GO depend on the degree of oxidation and its synthesis protocol. It is synthesized by mainly four methods, such as Staudenmaier, Hofmann, Brodie, and Hummer. There are many differences between these techniques, including continual changes to produce improved performance and less expensive systems. We manufacture this product by using the advanced modified Hummer method. Its carbon-oxygen ratios measure the implementation of oxidation, whereas our product has a high aspect ratio and excellent electrosorption capacity.
The GO films may be placed on a substratum and turned into a conductor later. Therefore, it is particularly suitable for developing transparent conducting films used in flexible electronics, solar cells, chemical sensors, and many more. It also studied in batteries and touchscreens as a supplement for Indium tin oxide ( ITO).
The larger surface area implies using it as an electrode for batteries, condensers, and solar cells. It is cheaper and simpler to process than Graphene so that commercial processing can be implemented and utilized earlier.
Operation Guide
It can easily combine with various polymers and other materials that improve the composite material properties, such as tensile power, elasticity, conductivity, etc. The flakes bind each other in solid shape, creating thin and durable flat folded structures, wrinkled, or extended. Its structures may use for the storage of hydrogen, ion conductors, and nano-filtrating membranes.
Graphene Oxide dispersion is an excellent phenomenon exhibited by graphene nanomaterials that have extra oxygen content. It ensures additional solubility and finds revolutionary applications in bio-film creations and fluorescence technologies.
On the other hand, Graphene nanoparticles with reduced oxygen content have proved exceptional with electrical conductivity, energy storage, and anti-corrosive properties.

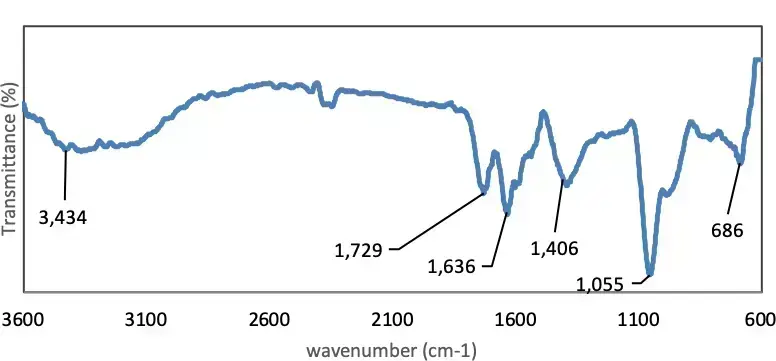

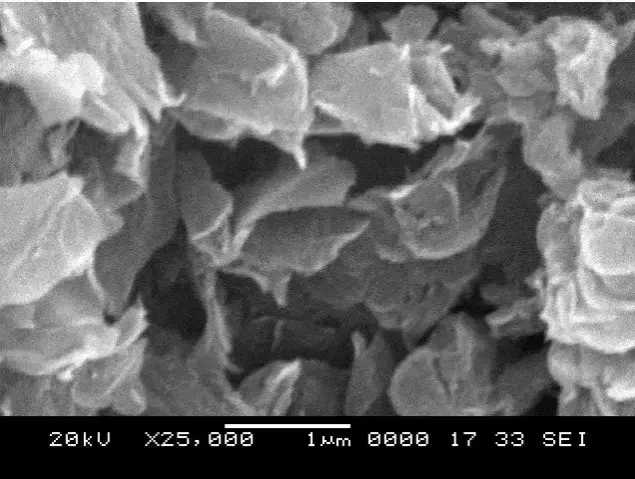

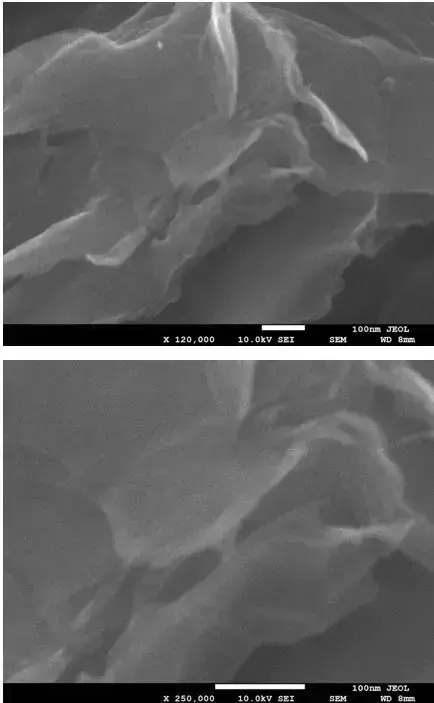

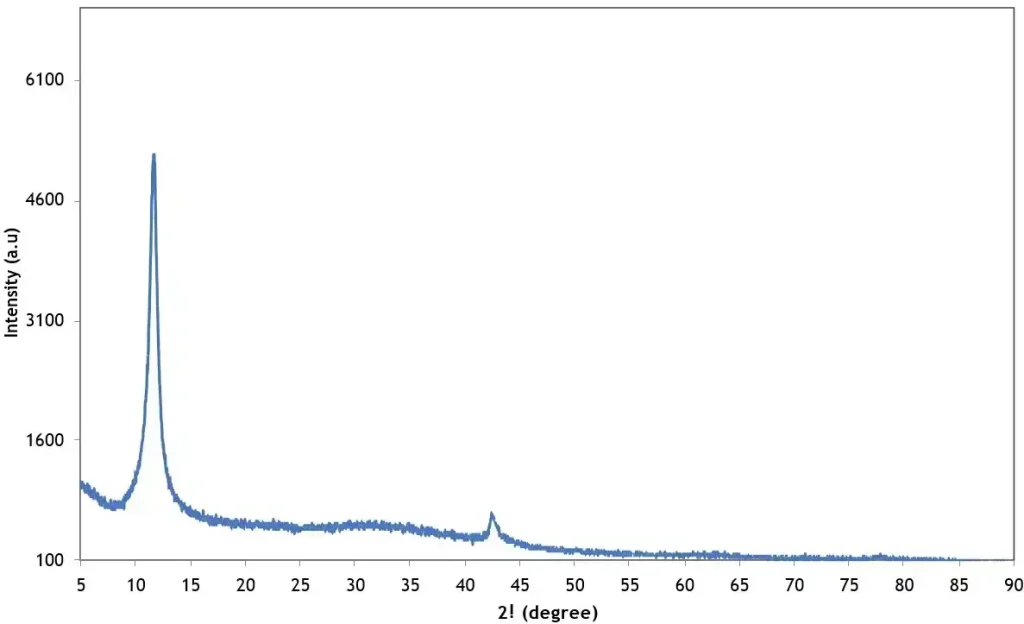

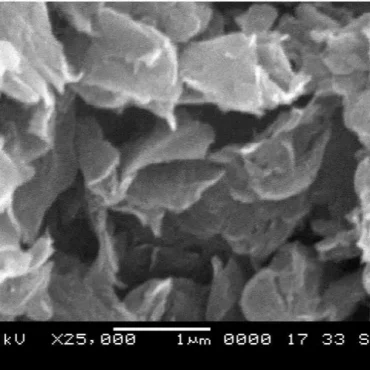

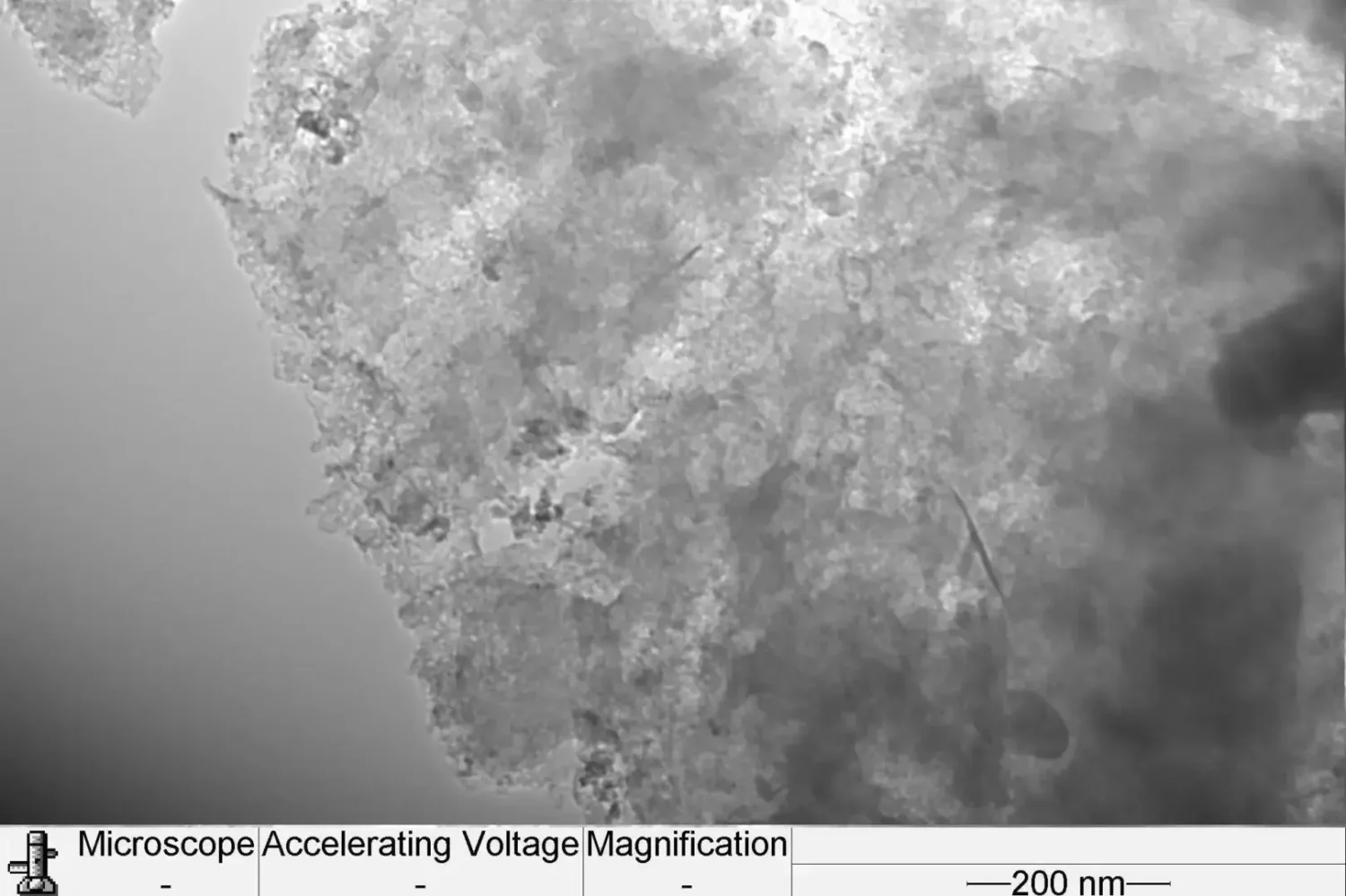

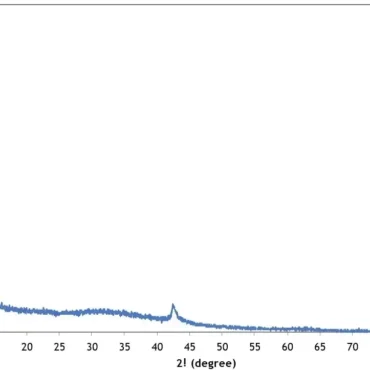

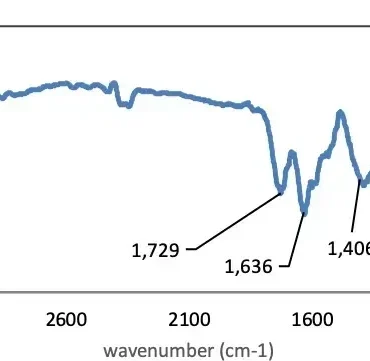

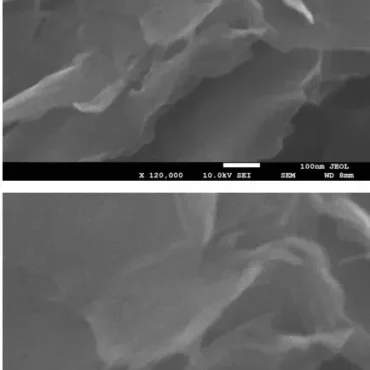

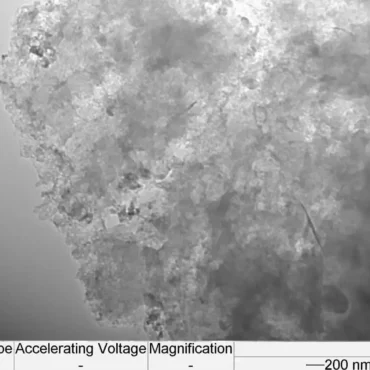

Characterization Data of Graphene Oxide
Applications of Graphene Oxide
It is a much talked about product in the industrial and manufacturing markets for its wide range of applications. Let us understand those applications, which make it precious in modern times.
Heat Resistance
The ability for an affordable material to withstand high temperatures is a rare phenomenon in industrial circuits. Most of such materials made up of rare elements that are too costly for intensive usage. Therefore, it is highly cost-effective for R&D works and large scale manufacturing.
Batteries
Clearly, the technology behind battery designing has not peaked yet. From Tesla to Intel, designing a powerful battery with optimum energy storage is a hot race. And guess what? With its exceptional capacity to empower supercapacitors, it can be a game-changer here!
Electronics
As mentioned in the first point, materials created with rare elements are costly and require substantial recycling systems to prevent exhaustion. The most common example is Silicon, which is an inalienable part of any electronic gadget today. Therefore, if users are looking to R&D on the efficiency of silicon-based electronic equipment, try considering GO for a fresh change in outcomes!
Usage
It is also used in various fields such as academic research centers & industries, defense, paints, coating, energy storage, biosensors, LED, batteries, supercapacitors, support for metallic catalysts, and solar cell application.
Benefits of Techinstro’s Graphene Oxide
It is produced, stored, and utilized in various physical forms to meet the demand for its wide range of applications.
- Graphene Oxide gel for polymers and flexible electronics.
- Ultra-thin powder form for lightweight manufacturing.
- High oxygen content for extra solubility and dispersion.
- Reduced oxygen content for energy storage and conductivity.
| Parameter | Graphene Oxide (GO) | Reduced Graphene Oxide (rGO) | Graphene Powder | Graphene Nanoplatelets (GNPs) |
|---|---|---|---|---|
| Material Type | Highly Oxidized Graphene | Partially Reduced Graphene Oxide | Pristine / Few-Layer Graphene | Multi-Layer Graphene Platelets |
| Appearance | Greyish Black | Dark Black | Black | Blackish Powder |
| Purity | >99% | >99% | >99% | 99.98% |
| Number of Layers | 2–6 | 3–6 | Typically 4–6 | 6–7 |
| Thickness | 3–5 nm | 0.8–2 nm | 5–10 nm | 8 nm |
| Lateral Size | 5–10 µm | ~10 µm | 5–10 µm | <50 µm |
| Specific Surface Area | >110 m²/g | >150 m²/g | ~150 m²/g | 20–40 m²/g |
| Bulk Density | 0.48 g/cc | 0.121 g/cc | 0.24 g/cc | ~0.10 g/mL |
| Oxygen Content | High (23%) | <8% | Very Low | <0.5% |
| Surface Functional Groups | Abundant Oxygen Functional Groups | Reduced Oxygen Functional Groups | Minimal Functional Groups | Minimal; Functionalized Grades Available |
| Water Dispersibility | Excellent | Moderate | Limited | Limited Without Functionalization |
| Electrical Conductivity | Low | High | Excellent | Excellent |
| Chemical Reactivity | Excellent | High | Low | Moderate |
| Ease of Functionalization | Excellent | Very Good | Moderate | Excellent with Functionalized Grades |
| Polymer Compatibility | Excellent | Very Good | Good | Excellent |
| Conductive Applications | Limited Unless Reduced | Excellent | Excellent | Excellent |
| Energy Storage | Excellent | Excellent | Excellent | Excellent |
| Membrane Applications | Excellent | Good | Limited | Moderate |
| Biosensor Applications | Excellent | Excellent | Very Good | Good |
| Composite Reinforcement | Very Good | Excellent | Excellent | Excellent |
| Typical Applications | Biosensors, Membranes, Coatings, Catalysts, Energy Storage, Functional Materials | Batteries, Supercapacitors, Sensors, Conductive Coatings, Electronics | Conductive Inks, Sensors, Batteries, Electronics, Composites | EMI Shielding, Composites, Batteries, Thermal Management, Conductive Coatings |
| Best Choice For | Dispersion, Functionalization & Surface Chemistry | Conductivity with Retained Surface Functionality | High-Conductivity Graphene Applications | Bulk Conductive & Reinforcing Composite Applications |
| Key Advantage | Excellent Dispersibility & Chemical Functionalization | Improved Conductivity over GO | High Electrical & Thermal Performance | Excellent Conductivity, Reinforcement & Processability |
Download Resources
Why Choose Us
At Techinstro, we have a flawless production mechanism, combined with valuable experience in this domain, assures that all types of our customized products can meet user’s demand for every R&D, retail, or bulk industrial scale.
We ensure that the GO has preserved and stored in laboratory refrigerators to maintain the quality ideal for user requirements. Feel free to contact us for the best prices to procure premium research quality customized products at a reasonable price. We specialize in the supply of highly pure graphene oxide powder and dispersion with high oxygen content.
FAQ's
In the supplied form, it is non-conductive (insulating), but can be reduced into a conductive form after processing.
Yes, disperses easily in water, IPA, and DMF.
Made from natural graphite flakes.
Produced by the advanced modified Hummers method.
Purity is greater than 99% (C 70.1%, O 23%, H 1.5%, N 5.4%, S 0%).
It has 2–6 layers, and it is 3–5 nm thick.
The flake size is 5–10 microns.
The surface area is >110 m²/g (BET) and the bulk density is 0.48 g/cc.
It is greyish black in color.
The functional groups are: Carbonyl, carboxyl, and hydroxyl groups.
Gel, ultra-thin powder, high-oxygen and reduced-oxygen variants.
Batteries, supercapacitors, solar cells, LEDs, sensors, coatings and research.
Sealed, in a cool, dry, moisture-free place.
