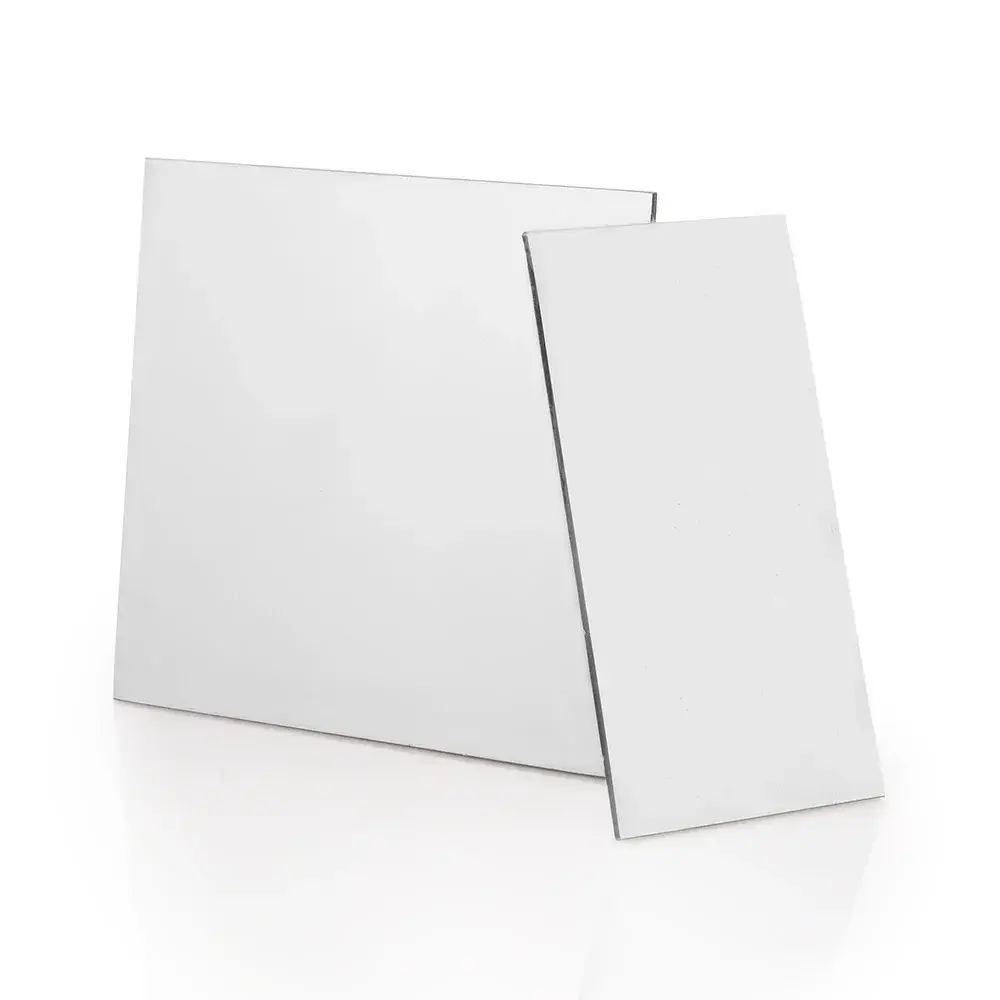

Molybdenum (Mo) Coated Glass
Molybdenum Coated Glass
Features
- Thickness : 0.8mm & 2mm
- Resistivity between 0.5 – 1 Ω • cm
- Thickness tolerance is +/- 0.2 mm
- Surface Resistivity < 1 ohms/sq
- Film Layer Thickness 500nm
- Temperatures up to 450˚C
Producers of molybdenum glass melting electrodes! Suppliers of highly pure, sturdy and superior quality Molybdenum (Mo) coatings on the glass in the dimension of your choice.
Technical Specifications of Molybdenum Coated Glass
Molybdenum coated glass is a conductive substrate produced by depositing a thin molybdenum (Mo) layer onto a glass surface using advanced sputtering techniques. Due to its excellent electrical conductivity, thermal stability, adhesion properties, and compatibility with thin-film deposition processes, molybdenum coated glass is widely used in CIGS solar cells, semiconductor research, electronic devices, electrode fabrication, and advanced materials research.
| Technical Specifications of Molybdenum Coated Glass | |
|---|---|
| Product Name | Molybdenum Coated Glass |
| Coating Material | Molybdenum (Mo) |
| Substrate Material | Glass |
| Appearance | Metallic Grey Conductive Coated Glass |
| Purity of Coating | ≥ 99.95% Molybdenum |
| Coating Method | Magnetron Sputtering / Physical Vapor Deposition (PVD) |
| Coating Thickness | Customizable (Typically 50 nm – 1000 nm) |
| Sheet Resistance | Depends on Coating Thickness |
| Electrical Conductivity | Excellent |
| Thermal Conductivity | High |
| Maximum Operating Temperature | Up to 500°C |
| Melting Point of Molybdenum | 2623°C |
| Adhesion Strength | Excellent |
| Surface Uniformity | High |
| Surface Roughness | Low |
| Optical Transparency | Depends on Coating Thickness |
| Corrosion Resistance | Good |
| Chemical Stability | Excellent |
| Substrate Thickness | Customizable (Typically 1.1 mm – 3 mm) |
| Available Dimensions | Custom Sizes Available |
| Mechanical Durability | Excellent |
| Vacuum Compatibility | Excellent |
| Applications | Thin Film Solar Cells, CIGS Solar Cells, Semiconductor Research, Sputtering Studies, Electrodes, Electronic Devices, Laboratory Research |
| Storage Conditions | Store in a Clean, Dry Environment and Handle with Gloves |
Key Features of Molybdenum Coated Glass
- High-purity molybdenum coating with excellent conductivity
- Uniform thin-film deposition using sputtering technology
- Excellent adhesion between coating and glass substrate
- Suitable for CIGS solar cell and thin-film photovoltaic research
- High thermal and chemical stability
- Low surface roughness for precision research applications
- Excellent vacuum compatibility for semiconductor processing
- Available in custom coating thicknesses and dimensions
| MOLYBDENUM (Mo) COATED GLASS ( Glass Thickness : 2 mm ), ( Resistivity : < 1 ohms/sq ) | ||||||
|---|---|---|---|---|---|---|
| Product Code | Description | Length x Width | Thickness (mm) | Surface Resistivity | Film Layer Thickness (Single side Coated) | |
| TIMO-001 | Mo Coated glass plate | 25 mm × 25 mm | 2 mm | <1 ohms/sq | 500nm | |
| TIMO-002 | Mo Coated glass plate | 50 mm × 25 mm | 2 mm | <1 ohms/sq | 500nm | |
| TIMO-003 | Mo Coated glass plate | 75 mm × 25 mm | 2 mm | <1 ohms/sq | 500nm | |
| TIMO-004 | Mo Coated glass plate | 50 mm × 50 mm | 2 mm | <1 ohms/sq | 500nm | |
| TIMO-005 | Mo Coated glass plate | 100 mm × 100 mm | 2 mm | <1 ohms/sq | 500nm | |
| MOLYBDENUM (Mo) COATED GLASS ( Glass Thickness : 0.8 mm ), ( Resistivity : < 1 ohms/sq ) | ||||||
|---|---|---|---|---|---|---|
| Product Code | Description | Length x Width | Thickness (mm) | Surface Resistivity | Film Layer Thickness (Single side Coated) | |
| TIMOX-001 | Mo Coated glass plate | 25 mm × 25 mm | 0.8 mm | < 1 ohms/sq | 500nm | |
| TIMOX-002 | Mo Coated glass plate | 50 mm × 25 mm | 0.8 mm | < 1 ohms/sq | 500nm | |
| TIMOX-003 | Mo Coated glass plate | 75 mm × 25 mm | 0.8 mm | < 1 ohms/sq | 500nm | |
| TIMOX-004 | Mo Coated glass plate | 50 mm × 50 mm | 0.8 mm | < 1 ohms/sq | 500nm | |
| TIMOX-005 | Mo Coated glass plate | 100 mm × 100 mm | 0.8 mm | <1 ohms/sq | 500nm | |
Full Description Molybdenum Coated Glass
Some features of Molybdenum coated soda lime glass slides designed by us are, that they optimize the conductive characteristics of photovoltaic systems that use copper indium sulphide CIS and CIGS (copper indium gallium dieseline) solar cells. We supply these glasses cover slip in different thicknesses & conductivity level depending on requirements of thin solar film manufacturers; sheet resistance, Na (sodium) diffusion, thin film stress, laser-scribing and glass protection layers (SiO2, SiNx or SiOxNy)
The 1.1 & 2mm thickness that we supply has Sheet Resistance level of 0.55 and Resistivity between 0.5 – 1 Ω • cm. Thickness tolerance is +/- 0.2 mm. We can supply customized sizes with length & width tolerance of +/- 1 mm. We also facilitate Seaming and grinding in C and K shape.
Molybdenum coated glass syncs perfectly with CIGS electrode as it is capable of performing under challenging conditions. Plus they are creep resistant, with high dimensional stability, are corrosion resistance; have electrical and thermal conductivity, and are pure.
Techinstro ensures that the raw material molybdenum is in the purest form, which guarantees that glass melting electrodes are free of impurities which lead absence of discoloration or bubble formation. They last longer and can withstand a lot of wear and tear.
Performance of Molybdenum Coated Glass
Techinstro is manufacturers and suppliers of high-quality glass solutions catering to clients worldwide; producing consistent, high-quality glass coatings. Our comprehensive product line that includes glasses, mirrors, and coatings for the wide range of industries, introduces another high-performance glass coating, Molybdenum or Mo coated glass substrate, used in solar panel films and energy industry.
Molybdenum Coated Glass vs FTO Glass vs ITO Glass
Molybdenum coated glass is widely used as a conductive back-contact substrate in thin-film photovoltaic devices, particularly CIGS (Copper Indium Gallium Selenide) solar cells. Compared to FTO coated glass and ITO coated glass, molybdenum coated glass offers superior metallic conductivity, excellent adhesion, high thermal stability, and exceptional compatibility with semiconductor and thin-film deposition processes.
| Parameter | Molybdenum Coated Glass | FTO Coated Glass | ITO Coated Glass | Plain Glass |
|---|---|---|---|---|
| Coating Material | Molybdenum (Mo) | Fluorine-Doped Tin Oxide (SnO₂:F) | Indium Tin Oxide (ITO) | None |
| Substrate | Glass | Glass | Glass | Glass |
| Appearance | Metallic Grey | Transparent Conductive | Transparent Conductive | Transparent |
| Electrical Conductivity | Excellent | High | Very High | Non-Conductive |
| Optical Transparency | Low to Moderate | High | Very High | Excellent |
| Thermal Stability | Excellent | Excellent | Very Good | Good |
| Maximum Operating Temperature | Up to 500°C | Up to 600°C | Up to 350°C | Up to 500°C |
| Surface Conductivity | Metallic Conductive Layer | Transparent Conductive Oxide | Transparent Conductive Oxide | None |
| Thin Film Deposition Compatibility | Excellent | Excellent | Excellent | Limited |
| CIGS Solar Cell Applications | Excellent | Limited | Limited | Not Suitable |
| Perovskite Solar Cell Applications | Good | Excellent | Excellent | Not Suitable |
| DSSC Applications | Limited | Excellent | Good | Not Suitable |
| Semiconductor Research | Excellent | Excellent | Excellent | Limited |
| Electrode Fabrication | Excellent | Good | Excellent | Not Suitable |
| Vacuum Compatibility | Excellent | Excellent | Very Good | Moderate |
| Chemical Stability | Excellent | Good | Good | Moderate |
| Coating Adhesion | Excellent | Excellent | Very Good | Not Applicable |
| Research Applications | Thin Film Photovoltaics, CIGS Research, Semiconductor Studies | DSSC, Electrochemistry, Solar Cells | Displays, Sensors, Optoelectronics | General Laboratory Use |
| Relative Cost | Moderate to High | Moderate | High | Economical |
| Key Advantage | Ideal Back Contact for CIGS Solar Cells | High Temperature Transparent Electrode | Highest Transparency & Conductivity | Low Cost Transparent Substrate |
Why Choose Molybdenum Coated Glass?
- Excellent electrical conductivity for electrode and back-contact applications
- Preferred substrate for CIGS solar cell fabrication
- High thermal stability for thin-film processing
- Excellent coating adhesion and surface uniformity
- Suitable for semiconductor and photovoltaic research
- Compatible with sputtering, evaporation, and deposition techniques
- Excellent vacuum compatibility for advanced materials research
- Available in customized coating thicknesses and dimensions
FAQ's
< 1ohms/sq
Magnetron sputtering method using a 99% pure MO target
600°C
It is single side coated
Solar cell fabrication, photovoltaic cell making and CIGS electrode
No
Shipping
In Molybdenum coated glass plate supplied by us, you can expect the tight cut size and thickness tolerance control, and a wide range of edge treatments. We use multiple grades of sheet resistance to customize performance requirements of the client. Our glasses come with superior corrosion resistance. Our designs are optimized and facilitate superior laser-scribing. Our Mo Glasses survive process temperatures up to 450˚C for a long period of time. Whatever that you may need, odd dimensions, mechanically processed, coated, with special threads or cooling holes, whatever be your demand, we’ll customize for you.
