Xenon Arc Lamp
Xenon Arc Lamp
Highlights
- SKU : XSL
- HS Code – 8539410000
- MOC – Xenon, Quartz, Tungsten with Thorium as a dopant
- Stock number – 10021 to 10024
- Wattage – 75W, 150W, 350W & 500W
- Operating Voltage – 14V, 18V, 22V & 20V
- Operating Current – 5A, 8.4Am, 16A & 25A
- Total Luminous Flux – 1400Lm, 3200Lm, 11500Lm & 14200Lm
- Electrode Distance – 1.5mm, 2.6mm, 3mm & 4mm
- Weight – 20gm, 80gm, 110gm, and 200gm
- Cooling Speed – 5M/sec
- Packing – Airtight protective shield
- Xe Purity – 99.98%
- Light Colour – Bright White
- Average Life – 750 operating hours
- Storage – In safe vacuum packing
- Delivery Mode – Air express courier
Description and Specifications Xenon Arc Lamp
The Xenon (Xe) arc lamp is designed and developed to emit the high luminescence light in bright white color. Since it contains a highly pure ionized Xe gas, hence it is called a Xenon lamp. It is also known by gas discharge lamp.
The xenon short arc lamp has two major categories that differentiate with variation in the composition. In one case the tube filled with only Xe gas and other with a small portion of mercury. The other one is known as a xenon-mercury lamp.

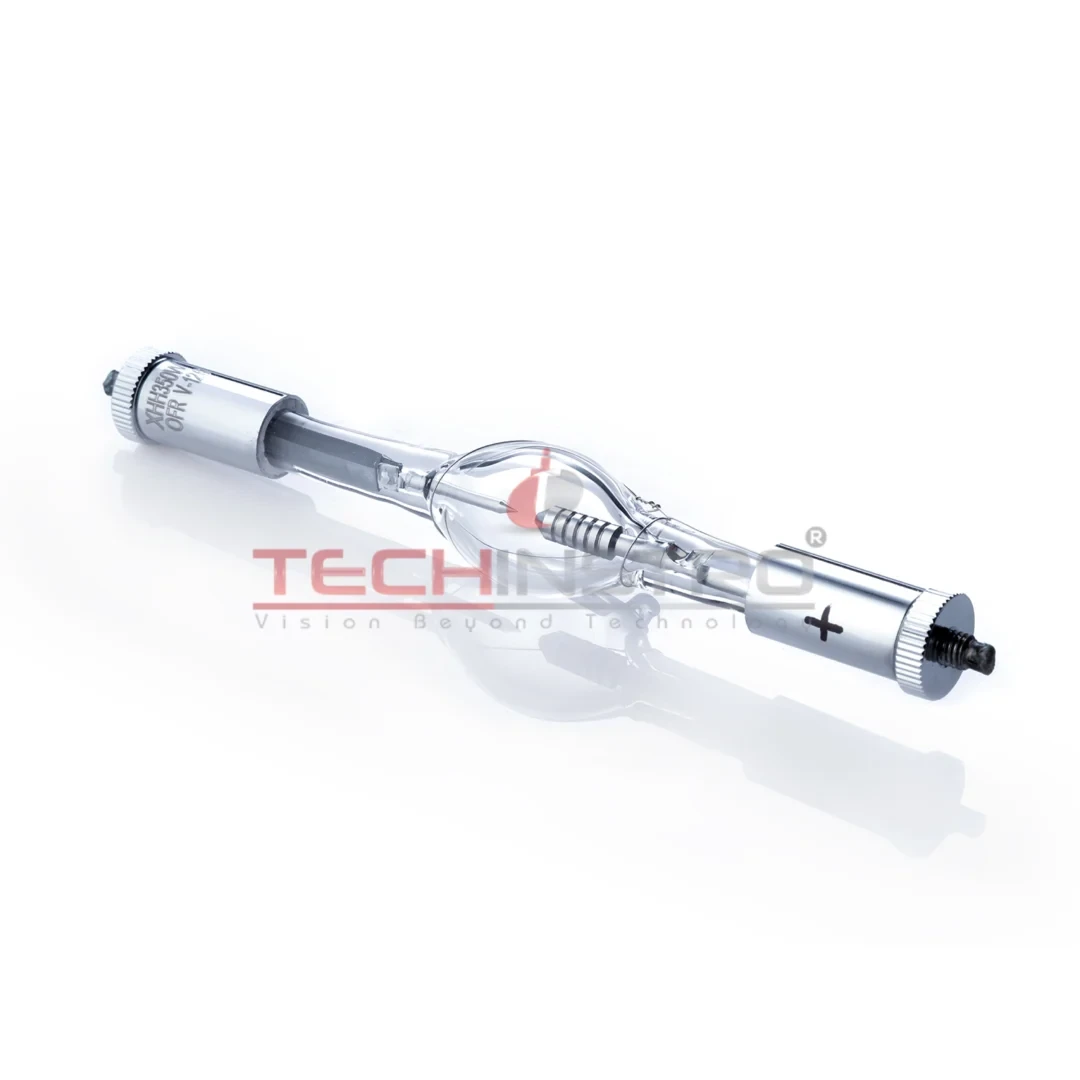

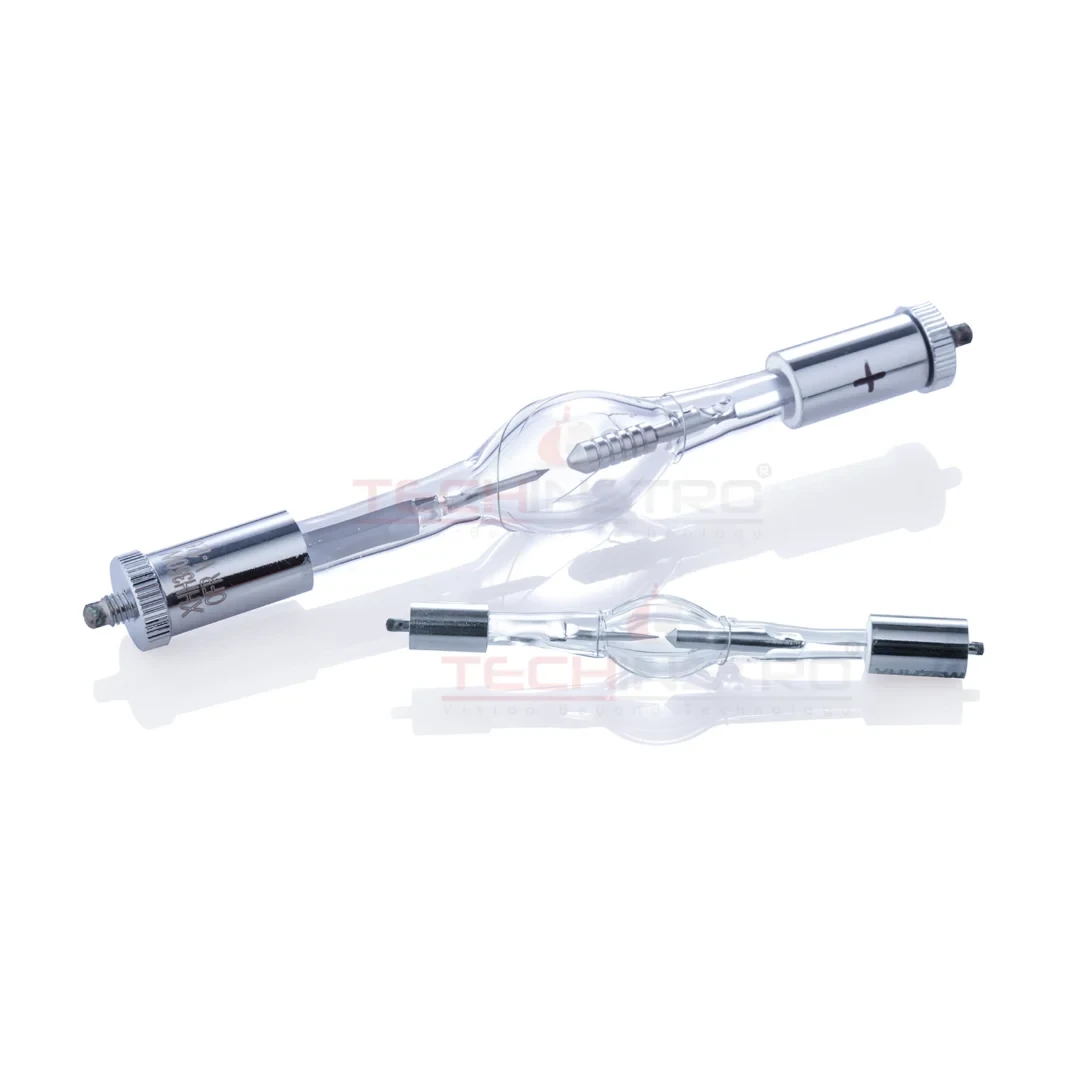

Generally, it is having three major types such as Xenon short arc lamp, Xenon long arc lamp, and Xenon flash lamp. In case of a short arc lamp, the anode is much larger than the cathode. The material of construction mainly includes Fused silica (Quartz) tube having an envelope at center, an anode (Positive terminal) and cathode (Negative terminal) made up of alloy of tungsten and optional starter wire. It designed in a way that, it can sustain high pressure and temperature. The air cooling is recommended to have a safe operation.
What is Xenon Short Arc Lamp?
Xenon short arc lamp is immensely powerful sources of luminescence and used in several different industries. It designed to use in spectrometers and similar optical applications. It produced a significant amount of light by generating a tiny pinhead-sized cloud of plasma, which formed at the tip of the two electrodes of the lamp.
The light which generated is shaped like two intersecting cones, starting from the electrodes at each end of the short arc lamp. Thus, the light intensity begins to decrease as you move towards the center of the light. Consequently, the light generation volume is cone-shaped, and luminous intensity is exponentially moving from cathode to anode. The xenon short arc lamps provide light in the bluish-white spectrum, here makes them ideal for precision-based optical applications, such as fiber optics and endoscopy technology. It also used inside the housing and used as a Xenon light source.
Operating Mechanism Xenon Arc Lamp
When a voltage applied to both ends of the electrode, the light emits due to electricity passed through ionized xenon gas at high pressure. This process generates white light, which is similar to natural sunlight. The emission spectrum covers the UV and Visible light which is similar to the sun. The light intensity is in the range of 20,000 to 500,000 cd/cm2 as per wattage. The wavelength range is measured in between 240nm to 850nm. The xenon lamp power supply is mandatory for long-life and continuous operation.
Features of Xenon Arc Lamp
- High luminescence
- 99.9% pure xenon gas
- High-end electrode material
- Hot restarting function
- High shelf life
- Constant provider of visible-range light spectrum
- Highly stable arc
- Instant glow on start
- Designed using advanced engineering for optimal application
Technical Specification
| Product Name | Xenon Arc Lamp |
| SKU | XSL |
| HS Code | 8539410000 |
| Available Wattages | 75 W, 150 W, 350 W and 500 W |
| Operating Voltage | 14 V, 18 V, 22 V and 20 V, respectively, for the listed wattage options |
| Operating Current | 5 A, 8.4 A, 16 A and 25 A, respectively, for the listed wattage options |
| Total Luminous Flux | 1400 lm, 3200 lm, 11500 lm and 14200 lm, respectively, for the listed wattage options |
| Electrode Distance | 1.5 mm, 2.6 mm, 3 mm and 4 mm, respectively, for the listed wattage options |
| Lamp Weight | 20 g, 80 g, 110 g and 200 g, respectively, for the listed wattage options |
| Construction Materials | Xenon gas, quartz (fused silica) envelope and tungsten electrodes; thorium may be used as an electrode dopant, as specified on the product page |
| Xenon Gas Purity | 99.98%, as listed in the main product highlights |
| Light Colour | Bright white |
| Wavelength Range | 240–850 nm, as stated on the product page |
| Light Intensity | 20,000–500,000 cd/cm², as stated on the product page; confirm the measurement basis for the selected model |
| Average Lamp Life | 750 operating hours |
| Cooling | Air cooling is recommended; follow the requirements for the selected lamp and housing |
| Power Supply | Compatible xenon lamp power supply required for operation |
| Listed Cooling Speed | 5 m/s, as published; confirm the intended airflow specification with Techinstro |
| Packaging | Airtight protective shield |
| Storage | Safe vacuum packaging, as specified on the product page |
| Available Lamp Types | Xenon short arc lamp, xenon long arc lamp and xenon flash lamp |
| Stock Numbers | 10021 to 10024 |
| Applications | Solar simulation, absorption and fluorescence studies, spectral scanning, daylight simulation, projection, searchlights, medical instruments, optical measurement and photo-heating |
Applications of Xenon Arc Lamp
- Solar Simulation
- Absorption
- Fluorescence
- Spectral scanning application
- daylight simulation industries
- movie projectors in theatres
- searchlights
- follow spots or spotlight
- Medical instruments
- Optical measurement devices
- Photo-heating devices
- IMAX technology
Download Resources
Comparison – Xenon Arc Lamp Types
| Comparison Parameter | Xenon Short Arc Lamp | Xenon Long Arc Lamp | Xenon Flash Lamp |
|---|---|---|---|
| Light Generation | Electric arc between closely spaced electrodes | Electric arc across a longer electrode gap | High-intensity light generated in short pulses |
| Light Output | Bright, concentrated light source | Light distributed along a longer arc | Intense, brief flashes of light |
| Operating Mode | Typically continuous operation with a compatible power supply | Typically continuous operation with a compatible power supply | Pulsed operation with suitable triggering and power electronics |
| Typical Use | Optical instruments, spectroscopy, solar simulation and precision illumination | Applications requiring an extended arc source and broad-area illumination | Stroboscopic illumination, pulsed-light experiments and selected imaging applications |
| Light Source Characteristics | Compact arc with high brightness | Elongated luminous arc | High peak output during each flash |
| Power Supply Requirements | Compatible arc-lamp ballast or power supply, according to model requirements | Power supply matched to lamp electrical ratings | Pulse-capable power supply and triggering circuit |
| Selection Considerations | Arc size, optical coupling, wattage and required illumination | Arc length, illumination geometry and electrical ratings | Pulse energy, flash duration, repetition rate and triggering requirements |
| Best Suited For | Applications needing a compact, high-brightness source | Applications needing a longer luminous source | Applications requiring brief, intense light pulses |
Note: This is a general comparison of xenon lamp types. Confirm the exact operating mode, dimensions, electrical ratings and availability of each type with Techinstro before ordering.
Why Choose Techinstro Xenon Arc Lamp?
Techinstro Xenon Arc Lamps are designed to provide high-intensity bright-white illumination for optical instruments, scientific research and industrial applications. Multiple wattage options support selection according to the required light output and equipment configuration.
- Multiple Wattage Options: Available in 75 W, 150 W, 350 W and 500 W options to suit different illumination requirements.
- High Luminous Output: The product page lists luminous flux values from 1400 lm to 14200 lm across the available wattage options.
- Broad Spectral Coverage: The stated wavelength range of 240–850 nm makes the lamp relevant to applications requiring ultraviolet and visible-light output, subject to the selected model’s actual emission spectrum.
- Bright-White Illumination: Xenon arc technology provides intense white light for optical measurement and illumination systems.
- Quartz Lamp Envelope: The fused-silica envelope is designed for the lamp’s high-temperature and high-pressure operating environment.
- Tungsten Electrodes: Tungsten electrode construction supports the electric arc; the product page also describes thorium as a possible electrode dopant.
- Optical and Scientific Applications: Suitable application areas include spectroscopy, fluorescence, absorption studies, spectral scanning and solar simulation.
- Industrial Applications: Xenon lamps can be used in projection systems, searchlights, medical instruments and optical measurement devices, subject to compatibility.
- Compatible Power Supply Support: Selecting a power supply that matches the lamp’s voltage, current and starting requirements is essential for reliable operation.
- Protective Packaging: The product page specifies protective airtight packaging and vacuum-packed storage.
- Application-Based Selection: Techinstro can help customers identify a suitable lamp configuration based on wattage, electrical ratings and intended use.
Contact our expert with your required wattage, operating voltage, current, optical setup and application to identify a suitable Xenon Arc Lamp.
Why Techinstro?
Techinstro has been the leading Xenon arc lamp supplier for over a decade now. Our immensely advanced and innovative engineering makes us the best manufacturer as well as the top reliable distributors all over the globe. It provides the highest luminescence range, at an affordable price. Xenon arc lamps are made from advanced technology and are essential requirements in numerous industrial and research uses all over the world.
FAQ's
It is a gas-discharge lamp that passes current through high-pressure, high-purity xenon gas to give a bright white light close to sunlight.
It is used in solar simulation, absorption and fluorescence studies, spectral scanning, optical measurement devices, projectors, and searchlights.
We offer 75 W, 150 W, 350 W, and 500 W lamps.
75 W runs at 14 V/5 A, 150 W at 18 V/8.4 A, 350 W at 22 V/16 A, and 500 W at 20 V/25 A.
Yes, a xenon lamp power supply is needed for stable, continuous operation and a long lamp life.
Each lamp gives about 750 operating hours.
It emits from about 240 nm to 850 nm, covering UV and visible light much like the sun.
It gives 1400 lm at 75 W, 3200 lm at 150 W, 11,500 lm at 350 W, and 14,200 lm at 500 W.
Choose it based on the light output you need, since intensity rises with wattage from 20,000 to 500,000 cd/cm².
Yes, air cooling at about 5 m/sec is recommended for safe operation.
It has a fused quartz envelope with tungsten electrodes doped with thorium.
The lamp is filled with 99.98% pure xenon gas.
