Graphene Sheet
Graphene Sheet

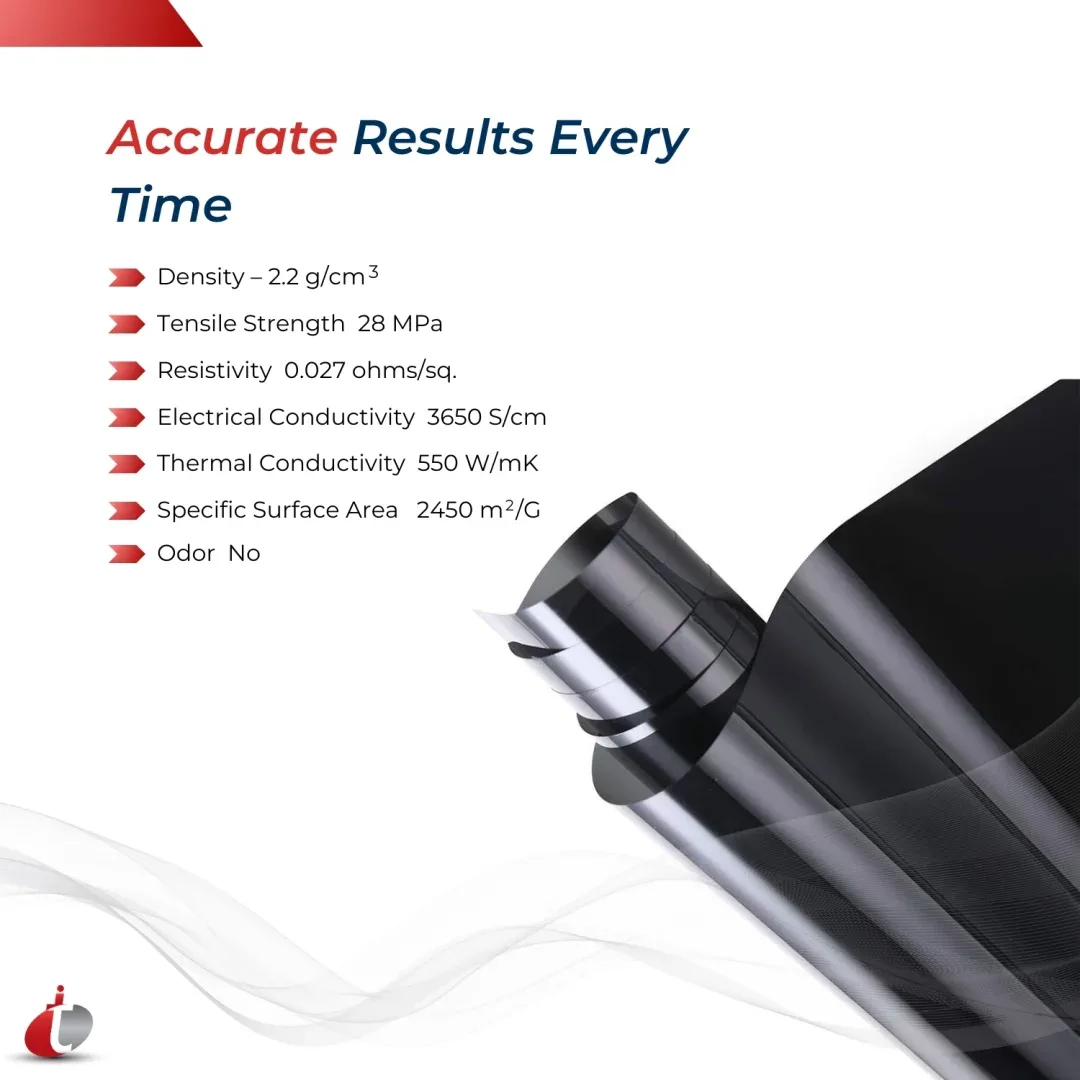

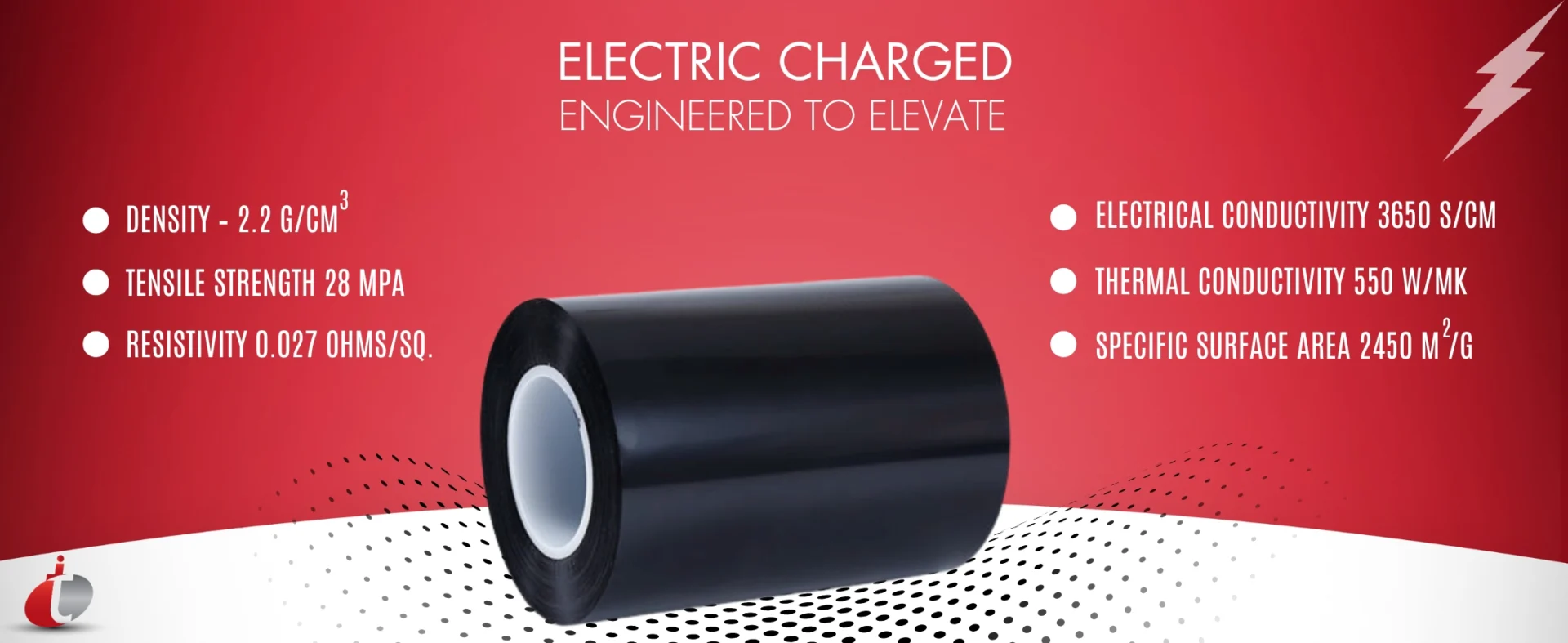

Main Highlights
- Product code – Graph-Sheet-TI
- Form Factor – Solid
- Color – Grayish Black
- Density – 2.2 g/cm3
- Tensile Strength – 28 MPa
- Resistivity – 0.027 ohms/sq.
- Electrical Conductivity – 3650 S/cm
- Thermal Conductivity – 550 W/mK
- Specific Surface Area – 2450 m2/G
- Odor – No
- Customization – Available
- Packing – 1 piece, 5 pieces, and 20 piece
Description and Specifications Of Graphene Sheet
The graphene sheet is a result of multiple layers of a single graphene film layer. It is a single crystal membrane that is not perfectly flat and posses some roughness (RMS – 1nm). There are many different methods to manufacture graphene films, but a chemical vapor deposition (CVD) is the best available synthesis process. The composition of these sheets includes mainly conductive graphene, having percent loading more than 98%. It is highly electrical and thermally conductive.

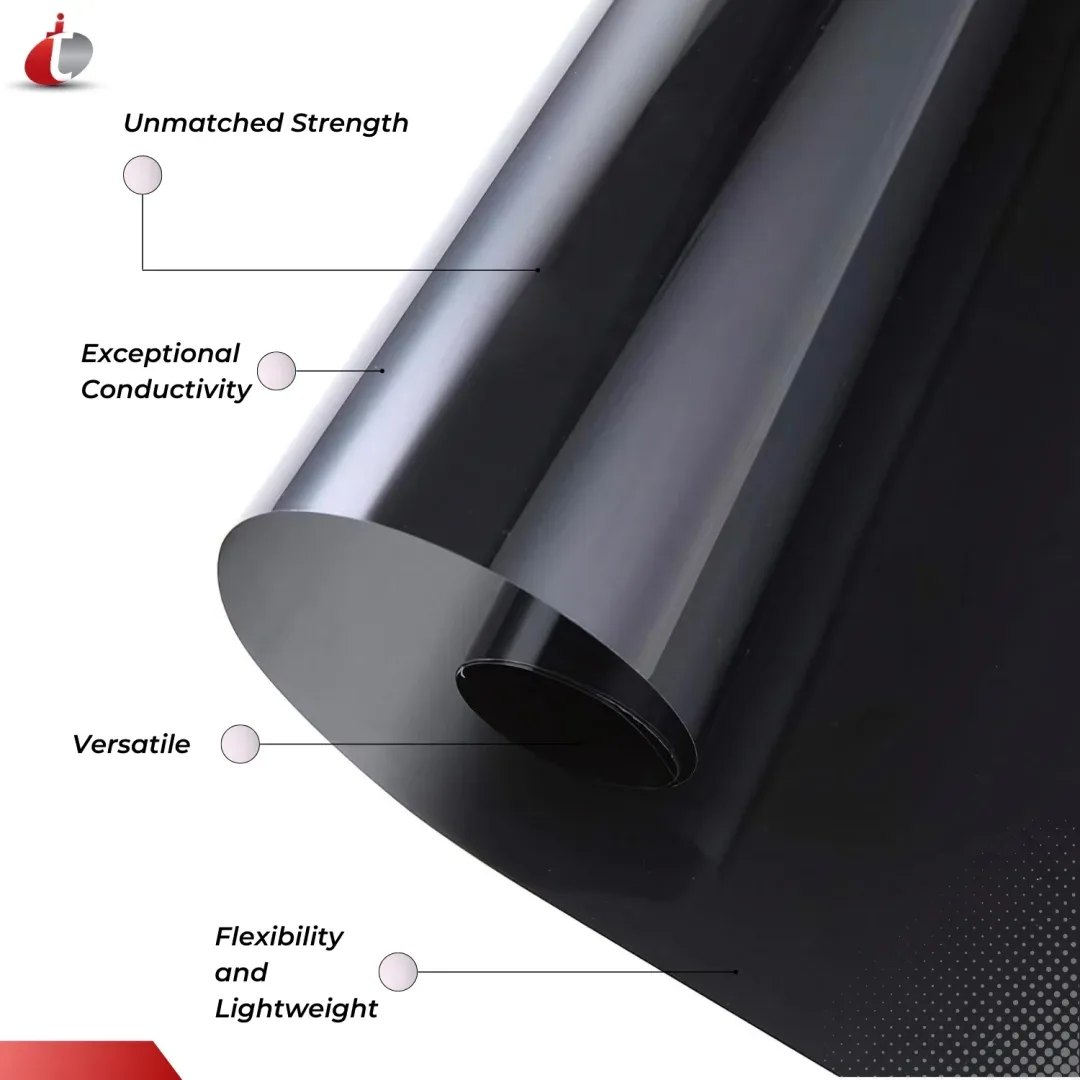

The formulation of this graphene sheet also includes some amount of additives, which ultimately improve its uniformity and toughness. It has excellent resistance to corrosion, ultrasonic dissolution, and fatigue. Structurally it is mainly composed of the hexagonal cross-linking of carbon atoms where it forms a strong covalent bond with each other. Due to the strength of the covalent bond, the sheets itself become robust and sturdy. It is thin, flexible, and extremely light-weighted.

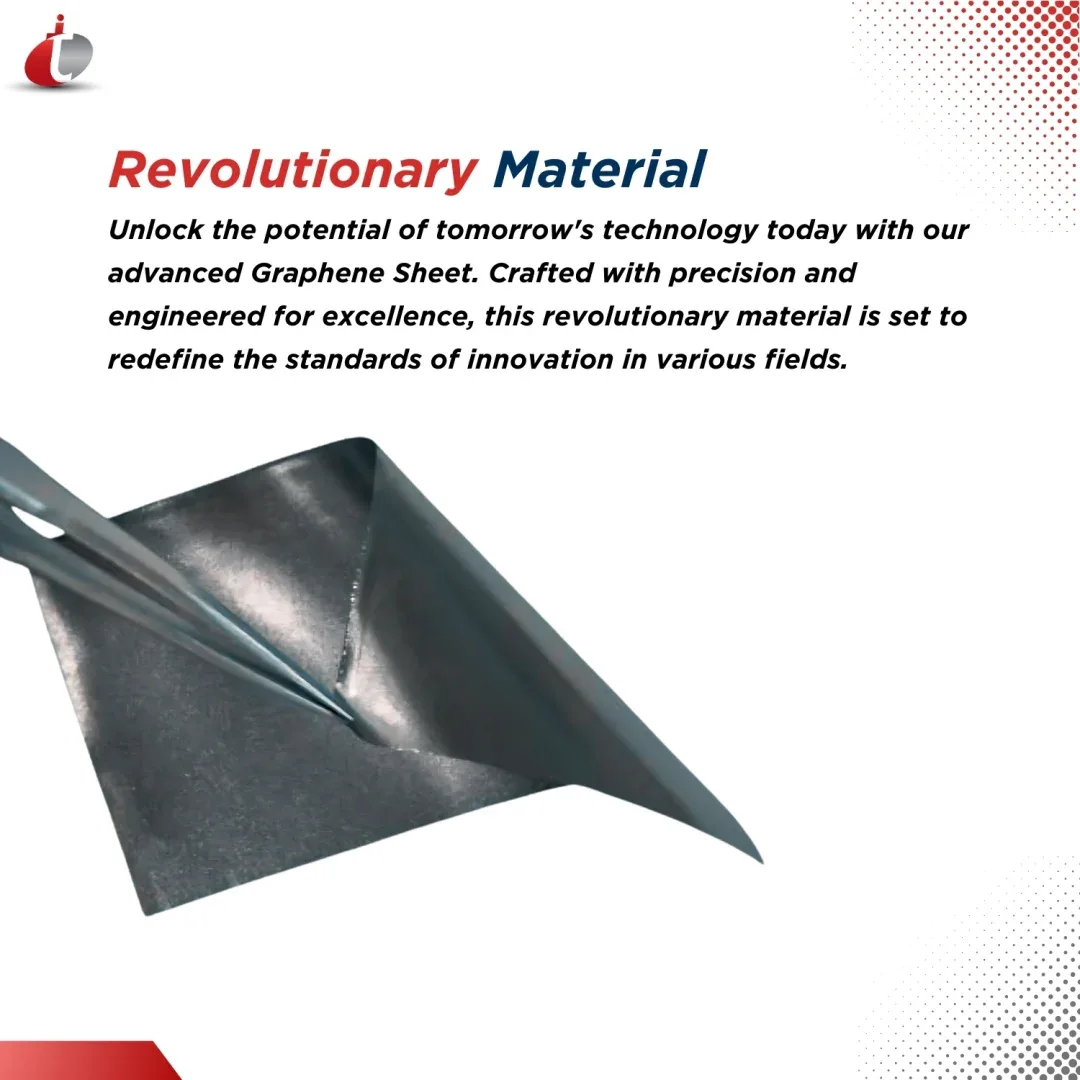

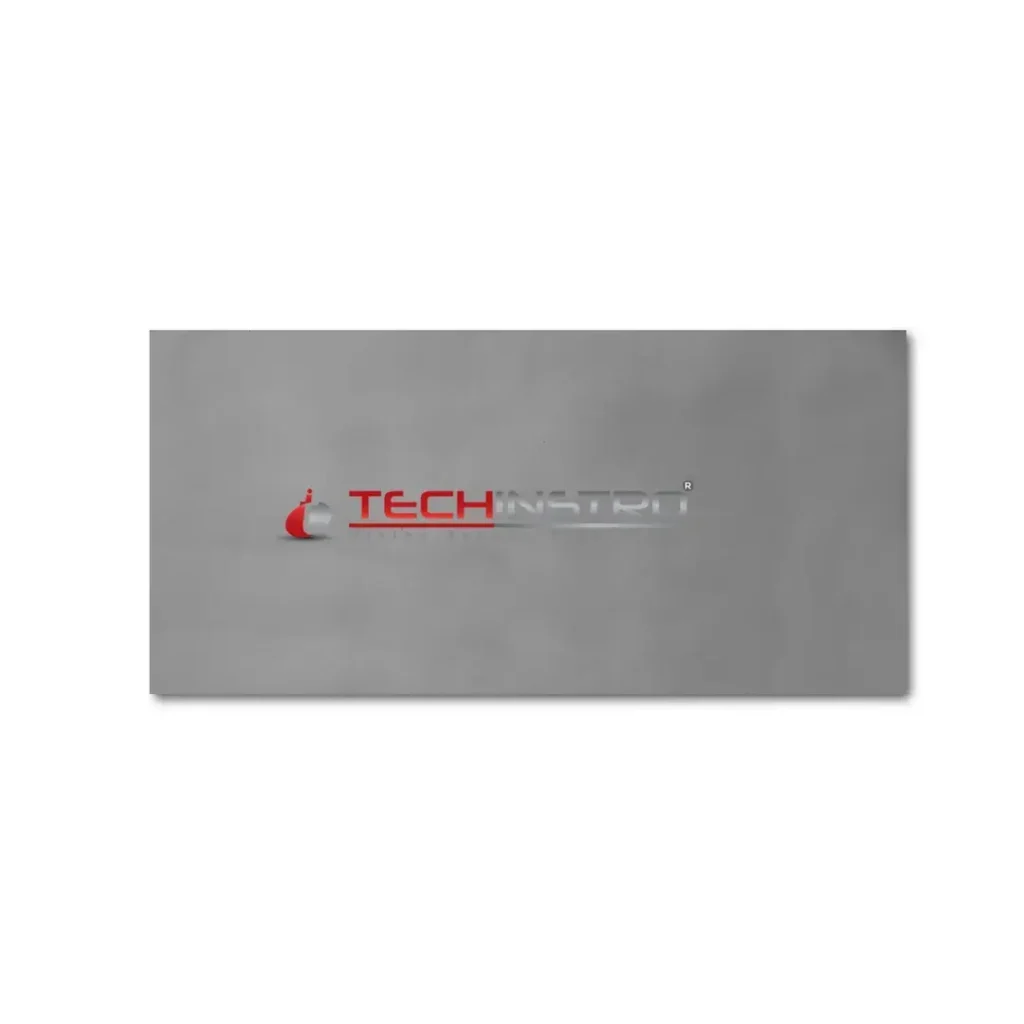

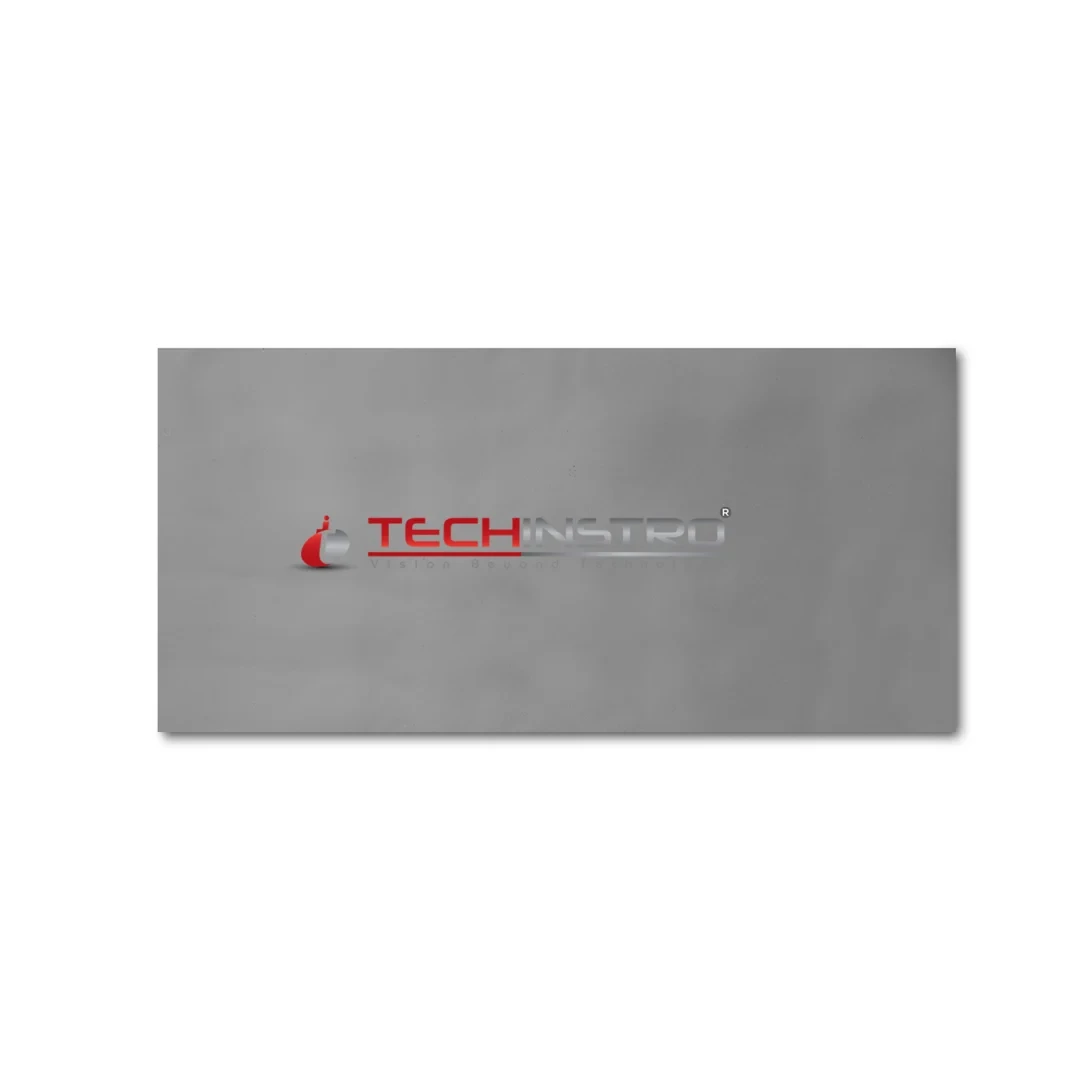

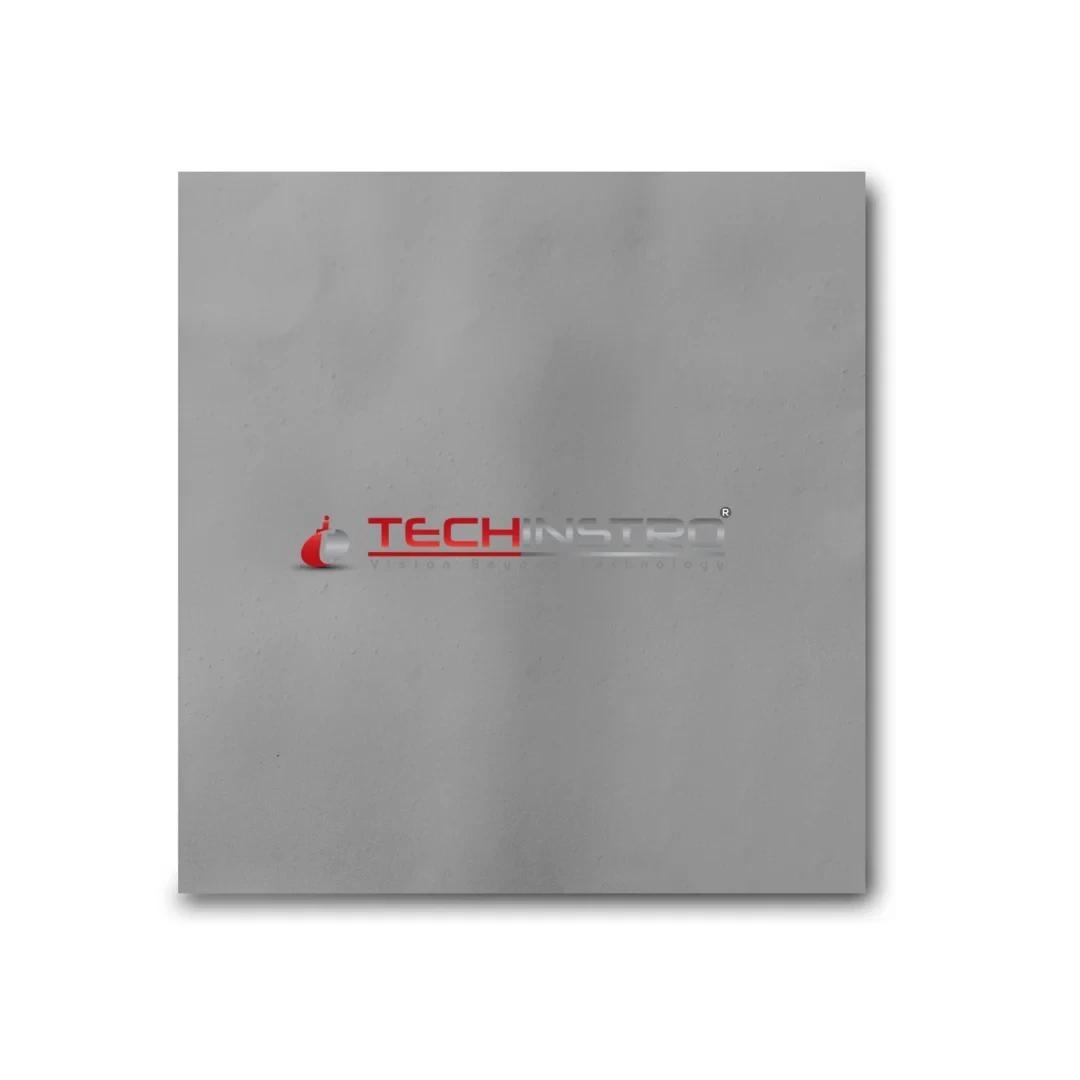

Generally, it is dark gray in color and shiny appearance on the surface. It is a thin flexible film with a thickness of around 35 microns and cut very smoothly with any cutter. We provide the sheets in a square and rectangular shape in many dimensions such as 8” x 8”, 8” x 4”, 4” x 4”, and 2” x 2”. We also sell as per the required customized size. The graphene film can also be grown over a various substrates like copper, nickel, glass, quartz, acrylic, SiC, stainless steel, and many more.
Technical Specification
| Product Name | Graphene Sheet |
| Product Code | Graph-Sheet-TI |
| Material | Graphene-Based Conductive Sheet |
| Form Factor | Solid Flexible Sheet / Film |
| Color | Grayish Black |
| Graphene Content | >98% |
| Structure | Multi-Layer Graphene Sheet |
| Typical Thickness | Approximately 35 µm |
| Surface Roughness | Approximately 1 nm RMS |
| Density | 2.2 g/cm³ |
| Tensile Strength | 28 MPa |
| Sheet Resistivity | 0.027 Ω/sq |
| Electrical Conductivity | 3650 S/cm |
| Thermal Conductivity | 550 W/m·K |
| Specific Surface Area | 2450 m²/g |
| Flexibility | High |
| Weight | Extremely Lightweight |
| Corrosion Resistance | Excellent |
| Fatigue Resistance | Excellent |
| Odor | None |
| Available Shapes | Square and Rectangular |
| Standard Sizes | 2″ × 2″, 4″ × 4″, 8″ × 4″, 8″ × 8″ |
| Custom Sizes | Available |
| Compatible Growth / Support Substrates | Copper, Nickel, Glass, Quartz, Acrylic, SiC and Stainless Steel |
| Customization | Available |
| Packaging | 1 Piece, 5 Pieces and 20 Pieces |
| Typical Applications | Flexible Electronics, Wearable Electronics, PCB, Heat Sinks, OLEDs, Touchscreens, RFID, Sensors, Supercapacitors, Photovoltaics, Optoelectronics and Energy Storage Devices |
| Recommended Storage | Store in a Clean Environment at Approximately 25°C and Handle Carefully |

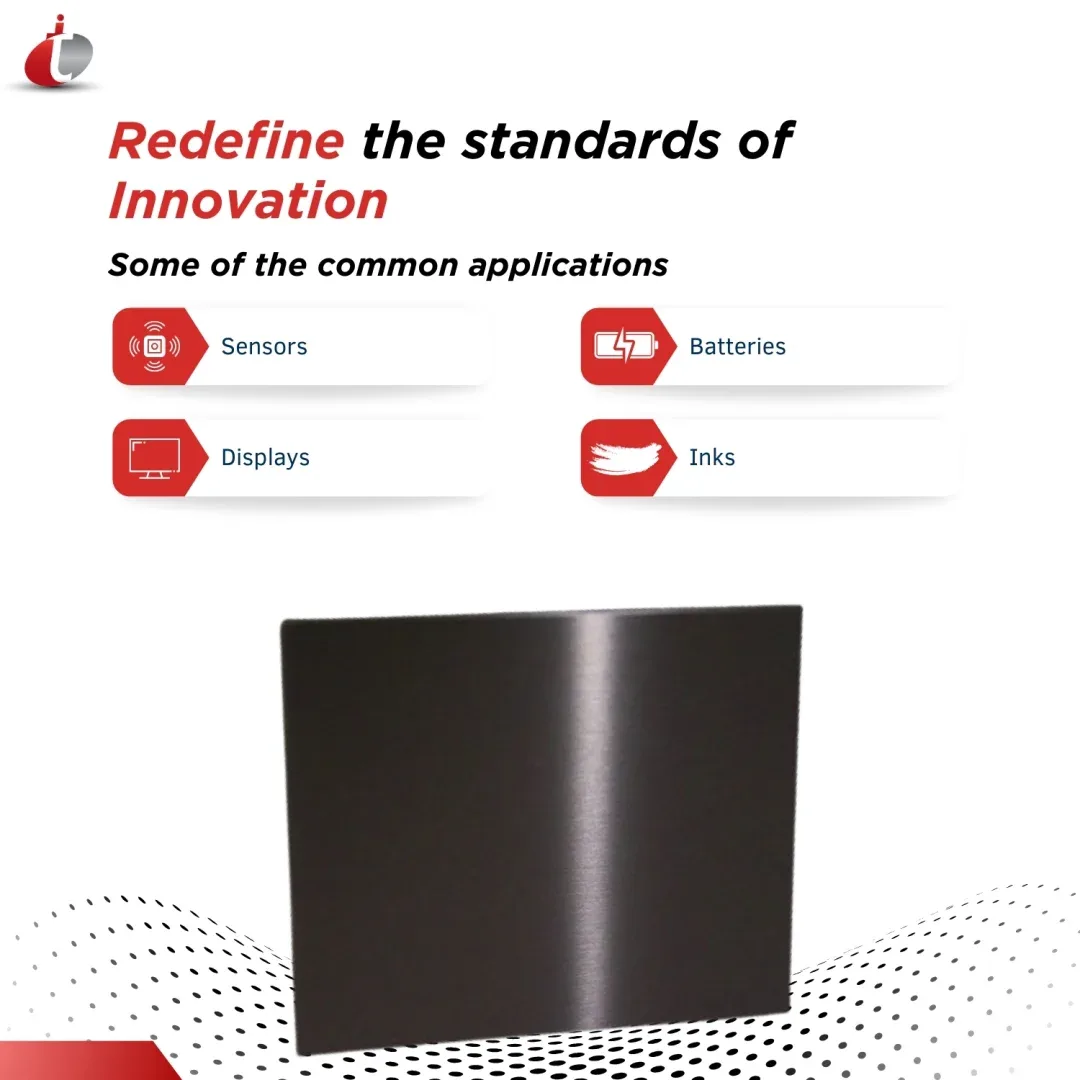

Applications of Graphene Sheet
Graphene Sheet mainly used in flexible and Flexographic’s electronics, wearable electronics, thermal applications, printed circuit board (PCB’s), Heat sinks, soldering, OLED, touchscreens, and radio-frequency identification tags (RFID) tags. The uses of graphene conductive ink include chemical and biological sensors, super-capacitors, smart packaging, membrane switches, thin-film transistors, e-paper, photovoltaic cells, and other printed devices. It also used to make the electrochemical, optoelectronics, and energy-storing device (Graphene battery).
Graphene's Sheet Vs Other Graphene's Products
| Parameter | Graphene Sheet | Graphene Powder | Graphene Nanoplatelets (GNPs) | Graphene Conductive Ink |
|---|---|---|---|---|
| Material Form | Solid Flexible Sheet | Fine Graphene Powder | Graphene Flakes / Platelets | Liquid Conductive Ink |
| Graphene / Carbon Content | >98% | >99% | >99% Carbon | 99.95% Pure Graphene Used in Formulation |
| Typical Thickness / Structure | ~35 µm Sheet | 5–10 nm Powder Thickness | ~8 nm Platelet Thickness | 2–3 Layer Graphene Particles |
| Electrical Conductivity | Excellent (3650 S/cm) | Excellent | Excellent | High |
| Sheet Resistance / Resistivity | 0.027 Ω/sq | Not Applicable as Bulk Powder | Not Applicable as Bulk Powder | 12 Ω/sq After Application |
| Thermal Conductivity | 550 W/m·K | Excellent | Excellent | Good to Excellent |
| Specific Surface Area | 2450 m²/g | ~150 m²/g | 20–40 m²/g | Depends on Formulation |
| Flexibility | Excellent | Not Applicable | Not Applicable | Excellent After Printing on Flexible Substrates |
| Direct Electrical Use | Excellent | Requires Formulation / Integration | Requires Formulation / Integration | Ready for Printing / Coating |
| Polymer Composite Use | Limited | Excellent | Excellent | Moderate |
| Conductive Coating Applications | Limited | Excellent After Formulation | Excellent After Formulation | Excellent |
| Printed Electronics | Good | Requires Ink Formulation | Requires Ink Formulation | Excellent |
| Thermal Management | Excellent | Excellent | Excellent | Good |
| Flexible Electronics | Excellent | Good After Integration | Good After Integration | Excellent |
| Wearable Electronics | Excellent | Moderate | Good | Excellent |
| Energy Storage Applications | Excellent | Excellent | Excellent | Very Good |
| EMI Shielding | Excellent | Excellent in Composites | Excellent in Composites | Good to Excellent |
| Ease of Integration | Easy for Sheet-Based Designs | Requires Dispersion or Mixing | Requires Dispersion or Mixing | Easy for Printing and Coating |
| Typical Applications | Flexible Electronics, Heat Spreaders, Sensors, RFID, OLEDs, Touchscreens | Batteries, Sensors, Conductive Composites, Inks, Electronics | EMI Shielding, Composites, Batteries, Thermal Management | Printed Electronics, Sensors, RFID, Wearables, Flexible Circuits |
| Best Choice For | Ready-to-Use Conductive & Thermal Sheet Applications | Research, Formulations & Nanocomposites | Bulk Composite Reinforcement & Conductive Additives | Printing, Patterning & Conductive Coatings |
| Key Advantage | Directly Usable, Flexible & Highly Conductive Film | High Versatility and Surface Area | Excellent Composite Processability | Easy Printable Conductive Formulation |
Why Choose Graphene Sheet?
- Excellent electrical conductivity of 3650 S/cm
- Low sheet resistivity of 0.027 Ω/sq
- High thermal conductivity of 550 W/m·K
- Thin, flexible and extremely lightweight construction
- Ready-to-use solid graphene format without dispersion
- Excellent corrosion and fatigue resistance
- Suitable for flexible and wearable electronic devices
- Available in standard and customized dimensions
Safety Measures
- Do not touch with bare hands
- Always use a hand gloves
- Store in a cleanroom at around 25-degree centigrade
- Handle with care, since it is very fragile
- Wear safety goggles while cutting into a pieces
Why Choose Us?
We are the manufacture and suppliers of the cost-effective graphene sheet. In the near future, we at the Techinstro are also making sheets for bulletproof jackets, EV vehicles, aerospace, and many more. We can provide a customized product as per the client requirement.
FAQ's
The thermal conductivity of our graphene sheet is 550 W/mK.
The graphene sheet has a density of 2.2 g/cm³.
It is made from multiple layers of single-layer graphene film, which is produced by chemical vapor deposition (CVD).
It is made from neither; it is CVD-grown conductive graphene with more than 98% loading, not derived from GO or rGO.
Yes, it is suitable for supercapacitors and other energy-storage devices such as graphene batteries.
Its electrical conductivity is 3650 S/cm, and its resistivity is 0.027 ohms/sq.
It contains a conductive graphene loading of more than 98%.
It is a flexible film around 35 microns thick that can be cut smoothly with any cutter.
It is a grayish-black solid film with a shiny surface.
The tensile strength of the graphene sheet is 28 MPa.
Its specific surface area is 2450 m²/g.
The graphene film can be grown over copper, nickel, glass, quartz, acrylic, SiC, stainless steel, and many more substrates.
It is mainly used in flexible and wearable electronics, PCBs, heat sinks, OLED, touchscreens, RFID tags, sensors, and supercapacitors.
