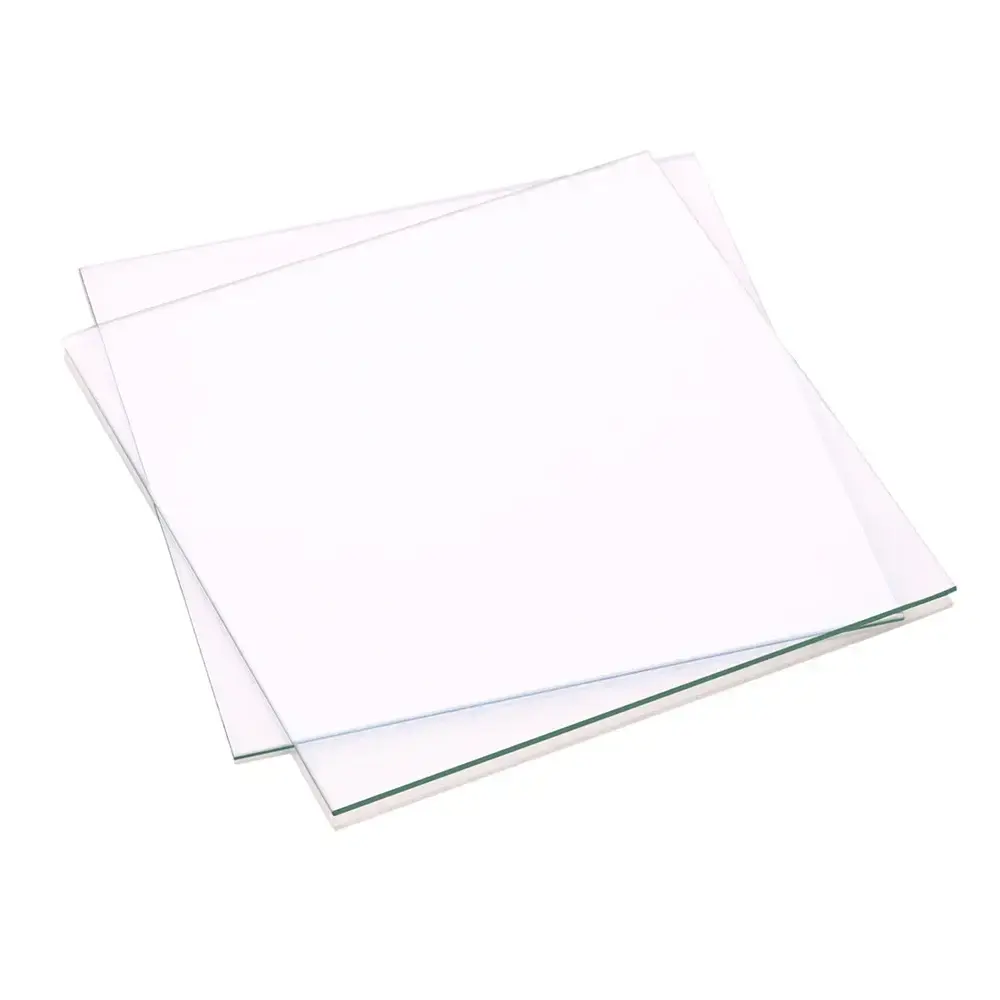

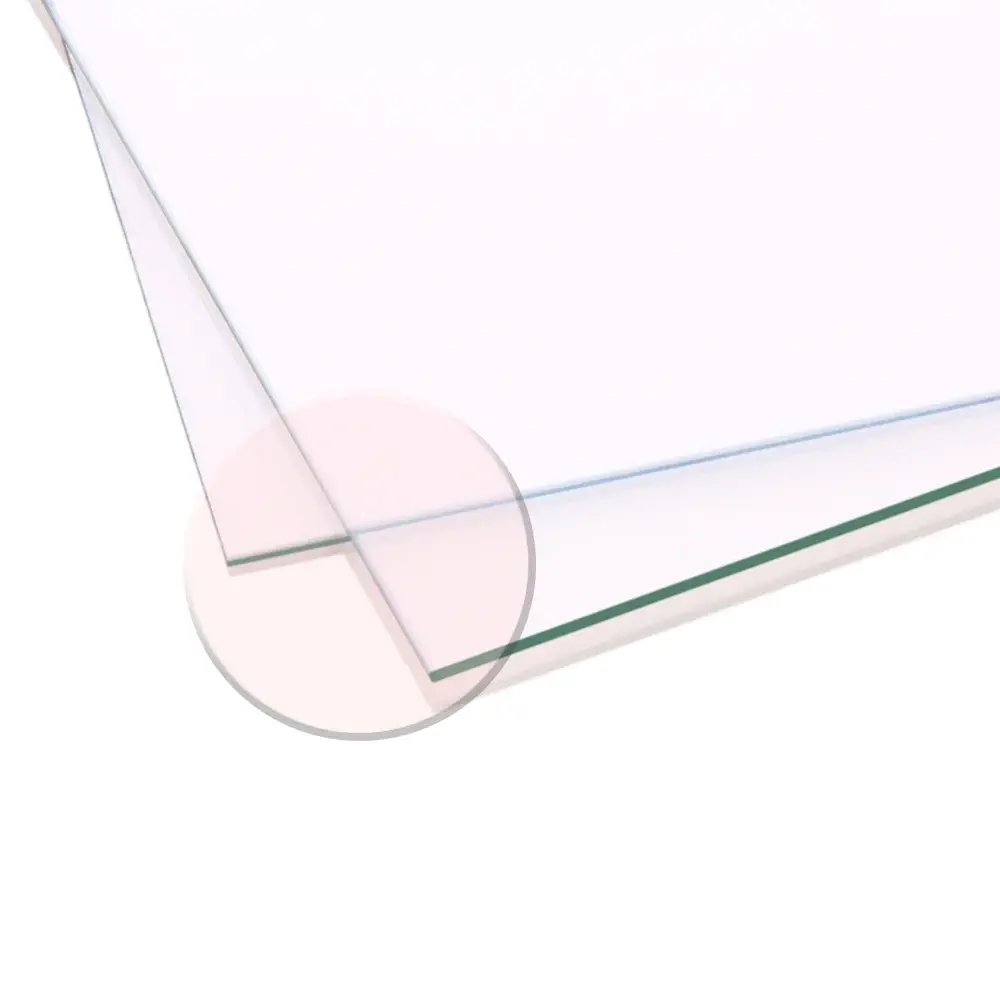

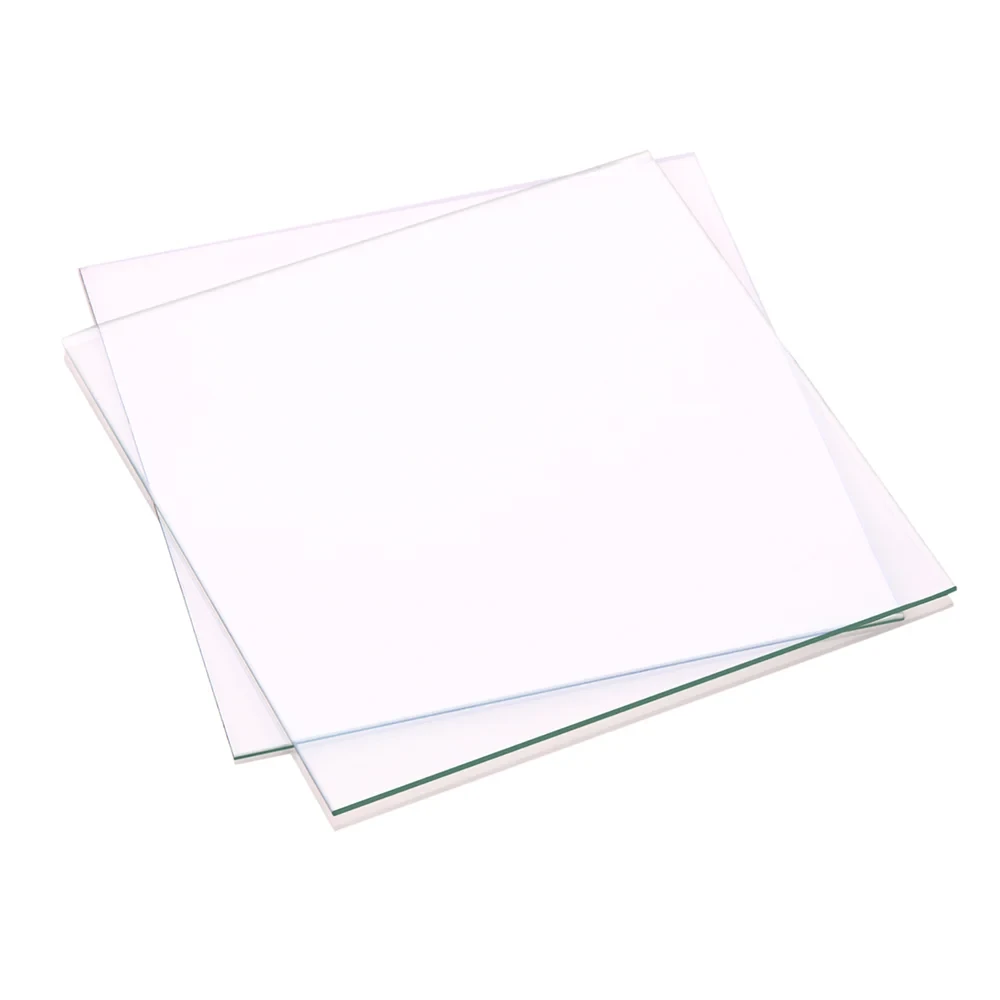

AZO Coated Glass
Azo Coated Glass
Main Highlights
- Sheet Resistance – 7.7 – 10.5 ohms/sq
- Transmittance @400-1000nm – 82-83%
- Uniformity of Resistance – ≤ 10ohms/sq
- AZO Layer Thickness – 8000 – 8500 Å
- Haze – ≤ 10%
- Flatness – 0.05%
- Warpage – 0.06%
- Squareness – ≤ 3.2 mm
- Dimension tolerance – ± 0.1 mm
- Thickness – 3.2 mm
Al Doped ZnO coated glass, Al Doped Zinc Oxide coated glass. AZO (Aluminum Doped Zinc Oxide films have become technologically important because of their wide range of electrical and optical properties, besides its high chemical & mechanical stability.
| AZO COATED GLASS ( Glass Thickness : 3.2 mm ), ( Resistivity : < 10 ohms/sq ) | ||||||
|---|---|---|---|---|---|---|
| Product Code | Description | Length x Width | Thickness (mm) | Surface Resistivity | Transmittance ( % ) | |
| AZO-001 | AZO coated glass slides | 25 mm × 25 mm | 3.2 mm | < 10 ohms/sq | > 80% | |
| AZO-002 | AZO coated glass slides | 50 mm × 25 mm | 3.2 mm | < 10 ohms/sq | > 80% | |
| AZO-003 | AZO coated glass slides | 75 mm × 25 mm | 3.2 mm | < 10 ohms/sq | > 80% | |
| AZO-004 | AZO coated glass slides | 50 mm × 50 mm | 3.2 mm | < 10 ohms/sq | > 80% | |
| AZO-005 | AZO coated glass slides | 100 mm × 100 mm | 3.2 mm | < 10 ohms/sq | > 80% | |
Full Description of Azo Coated Glass
AZO (Aluminum Doped Zinc Oxide) is amongst the best and most preferred transparent conductive oxide materials owing to its superior optical and electrical properties as mentioned above. Use of AZO-coated glasses is on the rise as the transparent conductive substrate is used in applications like the thin-film solar cell, OLED, electrochromic glass etc. They are used in a wide range of applications like flat panel display electrodes and gas sensors etc.
Owing to their large piezoelectric constant, these films can be used as surface acoustic wave devices and solar cells. Their optical band gap (3.3 eV) is wide which enables transmission of most of the useful solar radiation.
Al Doped ZnO coated glasses supplied by us come with a surface resistance of 10ohm/sq., transmittance >=80%, having a polished surface with no pattern. They have high density, 95+%, they’re hot pressed and conductive.
Its rise in demand comes from the major advantage of cost saving. A major cost saving is possible with AZO materials as compared to ITO and other TCOs. It is possible to obtain the complete range of sheet resistance, from < 50 Ω/sq. to M Ω/sq. with AZO by changing deposition thickness and parameters. As substrate heat is not required, it makes AZO ideal for polymer and substrates that are sensitive to temperature. Patterning of films by etching is easier than when compared to ITO films.
We can customize the product for you. If you require ITO/AZO/FTO, please let us know of your requirements with specifications. Based on your requirement,
AZO Glass Properties
we shall deliver the most suitable product for you. The picture of the product may be a little different, as per your requirement. We quote price according to size and requirements you may specify
Download Resources
AZO Coated Glass vs ITO vs FTO vs Plain Glass: Detailed Comparison
| Parameter | AZO Coated Glass | ITO Coated Glass | FTO Coated Glass | Plain Glass |
|---|---|---|---|---|
| Coating Material | Aluminum-Doped Zinc Oxide (AZO) | Indium Tin Oxide (ITO) | Fluorine-Doped Tin Oxide (FTO) | None |
| Electrical Conductivity | Good | Excellent | Very Good | Non-Conductive |
| Optical Transparency | 82–83% | 85–90% | 80–85% | >90% |
| Sheet Resistance | 7.7–10.5 Ω/sq | 5–100 Ω/sq | 7–15 Ω/sq | Not Applicable |
| Surface Finish | Smooth | Very Smooth | Textured | Smooth |
| Light Transmission | High | Excellent | Very Good | Excellent |
| Chemical Stability | Excellent | Good | Excellent | Excellent |
| Thermal Stability | Excellent | Moderate | Excellent | Excellent |
| Cost | Low | High | Medium | Very Low |
| Indium Free | ✔ Yes | ✖ No | ✔ Yes | ✔ Yes |
| Suitable for Thin Film Solar Cells | ✔ Excellent | ✔ Excellent | ✔ Excellent | ✖ No |
| Suitable for OLED Displays | ✔ Good | ✔ Excellent | ✔ Good | ✖ No |
| Suitable for Gas Sensors | ✔ Excellent | ✔ Good | ✔ Good | ✖ No |
| Flexible Electronics Compatibility | ✔ Better | Moderate | Limited | Not Applicable |
| Best For | Solar Cells, Sensors, Electrochromic Devices, Transparent Electrodes | Touchscreens, LCDs, OLEDs, Precision Electronics | DSSC, Perovskite Solar Cells, High-Temperature Devices | General Optical Applications |
Why Choose AZO Coated Glass?
AZO (Aluminum-Doped Zinc Oxide) Coated Glass is an excellent transparent conductive substrate that combines high optical transparency, reliable electrical conductivity, and outstanding chemical stability. Unlike conventional conductive coatings, AZO is indium-free, making it a more economical and sustainable solution for research laboratories, photovoltaic devices, sensors, and advanced electronic applications.
- Excellent Electrical Conductivity – Low sheet resistance (7.7–10.5 Ω/sq) ensures efficient current collection and signal transmission.
- High Optical Transparency – Delivers over 80% light transmittance while maintaining excellent conductivity, making it ideal for optoelectronic devices.
- Cost-Effective Alternative to ITO – Uses abundant aluminum and zinc instead of expensive indium, significantly reducing material costs.
- Superior Chemical & Mechanical Stability – Resistant to oxidation, corrosion, and environmental degradation for long-term performance.
- Excellent Thermal Stability – Performs reliably during high-temperature fabrication processes such as thin-film deposition and annealing.
- Eco-Friendly & Indium-Free – Manufactured using environmentally friendly materials, making it a sustainable transparent conductive oxide (TCO).
- Easy Patterning & Processing – AZO coatings can be etched and patterned more easily than many conventional conductive coatings.
- Suitable for Temperature-Sensitive Substrates – Can be deposited without high substrate temperatures, making it compatible with polymers and flexible materials.
- Wide Range of Applications – Ideal for thin-film solar cells, OLEDs, electrochromic glass, gas sensors, transparent electrodes, displays, and research applications.
- Available in Multiple Sizes – Offered in various standard dimensions with customization options for research and industrial requirements.
FAQ's
AZO is aluminum-doped zinc oxide, a transparent conductive oxide with high optical transparency and electrical conductivity.
A glass substrate with a thin and transparent conductive layer of aluminum-doped zinc oxide on one side; the other side remains non-conductive.
Yes. Custom sizes are available depending on order quantity.
Magnetron sputtering deposits a uniform AZO film on glass.
Typically 8000–8500 Å (800–850 nm) thick.
Around 7.7 – 10.5 Ω/sq (ohms per square)
The transmittance is typically greater than 80%
ITO has better conductivity, whereas AZO is more cost-effective and offers excellent temperature stability.
Used in solar cells, displays, sensors, smart windows, and optoelectronic research.
Yes. AZO-coated glass is widely used as a transparent electrode in thin-film solar cell research, CIGS, and CdTe devices.
Yes. It can operate at temperatures of around 600 °C.
